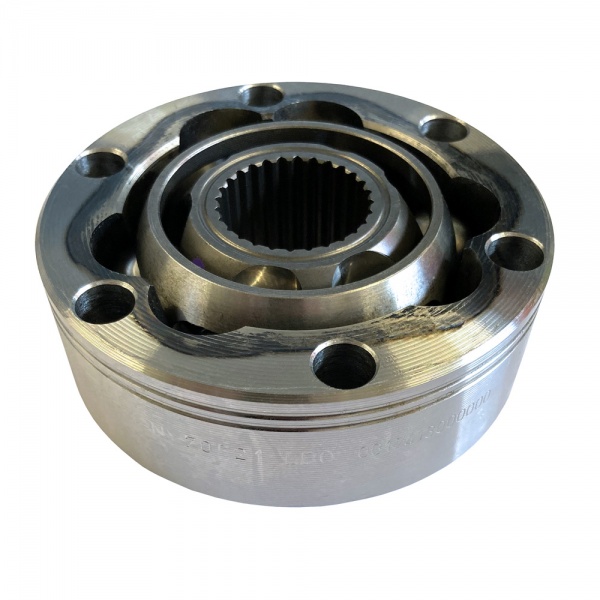

GKN 100mm OD Size 12 Heavy Duty CV Joints

GKN 100mm OD Size 12 Heavy Duty CV Joints
  Zoom
Price:  $744.07(Exc. 7% Sales Tax - GA only)
+

Part Number:  MS3K032
Unit of Issue:  Each
Joint Diameter:  100mm OD
Joint Width:  32mm
Joint Splines:  28 splines
Mount Holes:  10mm ID
Bolt Hole PCD:  6 x 86mm
Joint Plunge:  +/- 8mm

Availability:



No stock, delayed despatch

GKN


GKN Motorsport S12 100mm heavy duty, easy motion CV joints. These plunging constant velocity joints feature a 100mm OD and and have been developed by GKN Motorsport to ensure easy rotational liner motion at for wheel or differential applications. With over 30 years of continuous development of GKN Driveline products, these GKN Motorsport plunging CV joints offer high levels of reliability and joint service life.

  • Joint Width: 32mm
  • Joint Spline: 28
  • Bolt Holes: 10mm x 6
  • Plunging joints are most often used as the inboard joint (transmission side) on FWD vehicles and on the inboard and outboard of RWD and AWD applications with independent suspension. The plunge on these joints is +/- 8mm. GKN are the largest designer and manufacturer of driveline solutions in the world, which enables GKN Motorsport to offer an unsurpassed range of standard, lightened and easy motion constant velocity joints able to cope with the most demanding applications. This product replaces GKN MS6K018. To discuss your requirements, please email or give us a call.

  • The plunge on these CV Joints is +/- 8mm
  • Heavy Duty, Easy Motion Motorsport Joints
  • Use with the GKN MS6K024 Joint Fast Boot
