Home > Brands > Goodridge > 600/700 Series Hose Fittings
Part Number: 756-03PHose Size / Type -03 (600/700 Hose)Fitting Material Plated SteelThread Size -03 JIC (3/8-24 UNF)Seat Type Convex
Availability
No stock, delayed despatch

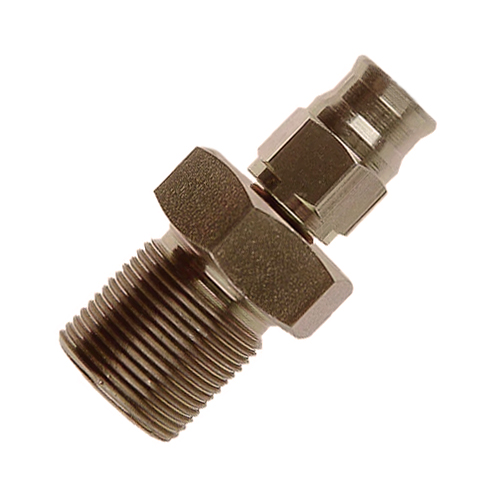

Goodridge AN-03 straight female fitting, with a convex internal seat and a 3/8-20 BSF external thread for retaining in a bracket or through a panel. Manufactured in steel with a zinc passivated finish for corrosion protection. For use with -03 Goodridge 600 or 700 series PTFE lined hose. These reusable fittings can be taken apart, cleaned and reassembled with a new Goodridge olive.
Priced Each
Goodridge AN-03 Straight Concave Female Plated Steel BSF Fitting$16.63
Goodridge M10 x 1 St Convex Female Plated Steel Bulkhead Fitting$16.07
Goodridge M10 x 1 Straight Convex Female Plated Steel Twin Circlip Fitting$16.46
Goodridge M10x1 Straight Convex Female Plated Steel Circlip Fitting$16.46
