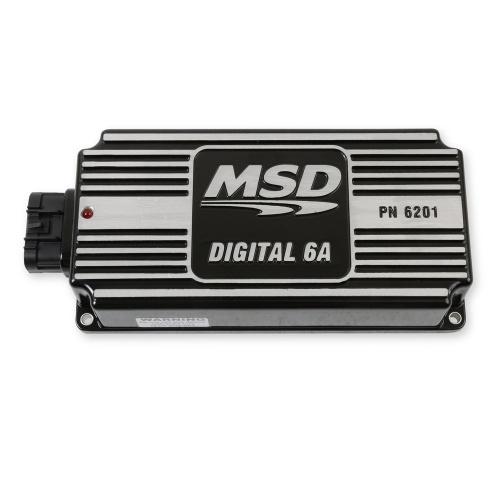

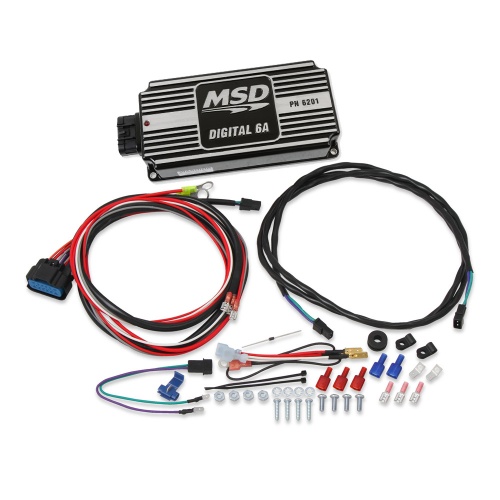

MSD Digital 6A Ignition Controller 6201 Black

MSD Digital 6A Ignition Controller 6201 Black

$299.95

(Exc. 8% Sales Tax - GA only)

Special order, 7-10 days

–

Part Number

62013

Information

MSD's 6A digital ignition is the base model in black, but also available HERE in red. This system is ideal for those looking for a 'hotter' spark and improved drivability. This unit does not include a rev limiter and one cannot be added. If you need a rev limiter then the 6AL is a more appropriate, CLICK HERE to take a look.

Features

Easy Starts
Smooth Idle
Quick throttle response
Built-in LED for system checks
Full, capacitive discharge ignition power throughout the RPM range
Compatible with 4, 6 or 8 - cylinder engines
Tach output wire

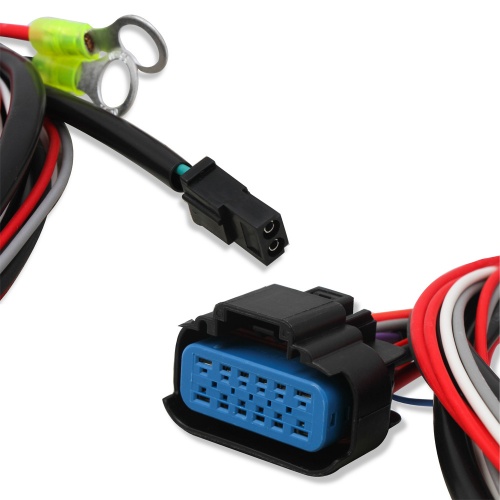

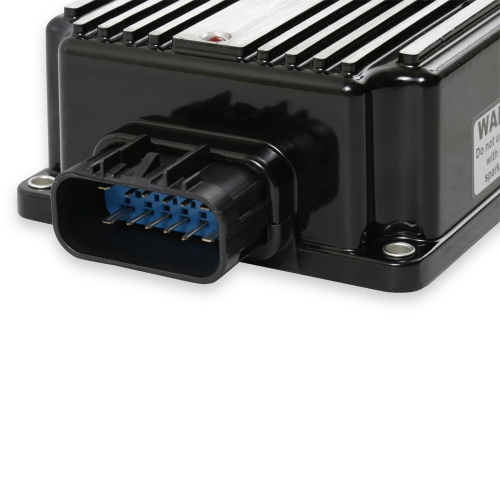

Sealed, locking connector

Specs

Brand	MSD
Color	Black
Current Draw	1.1 Amp per 1,000 RPM
Emission Code	1
Features	No Rev Limiter
Primary Voltage	520-540 Volts
Product Type	Digital 6A Ignition Control Box
RPM Range	15,00 RPM with 14.4 volts
Secondary Voltage	45,000 Volts
Spark Energy	135-145 mJ per spark
Voltage Required	12-15 Volts, 7 Volt Start
Warranty	Limited 1 Year Warranty (PDF)
Weight and Size	1.7 lbs, 8" L x 4" W x 1.825" H
UPC	085132620135
Part Number	62013

Emissions

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.

The following vehicles are considered Emissions Controlled Vehicles:

1966 and newer U.S. manufactured California Certified vehicles
1968 and newer U.S. manufactured Federally Certified vehicles
1968 and newer Foreign manufactured vehicles

P65 Warning

"WARNING: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm.

CLICK HERE FOR MORE INFORMATION
