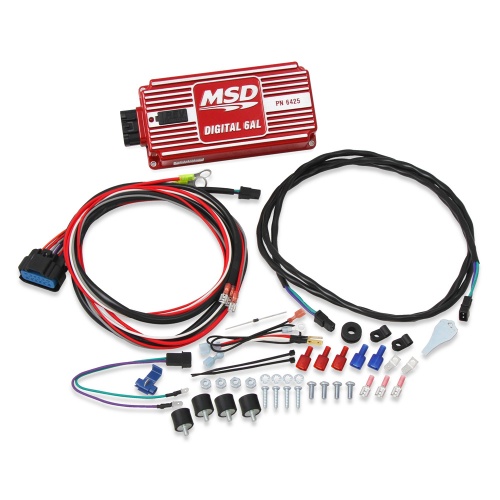

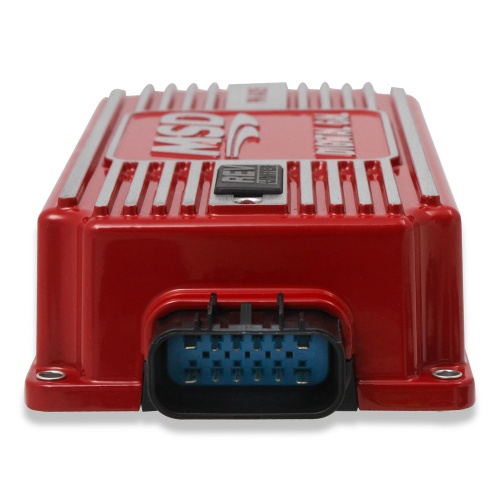

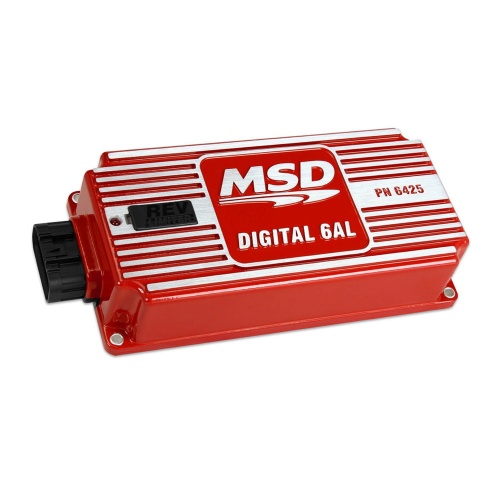

MSD Digital 6AL Ignition Controller 6425 Red

MSD Digital 6AL Ignition Controller 6425 Red
  Zoom
MSD Digital 6AL Ignition Controller 6425 RedMSD Digital 6AL Ignition Controller 6425 RedMSD Digital 6AL Ignition Controller 6425 RedMSD Digital 6AL Ignition Controller 6425 Red
Price:  $338.95(Exc. 8% Sales Tax - GA only)
+

Part Number:  6425

Availability



No stock, delayed despatch

MSD Ignition

Installation Instructions (PDF)
Emissions
 This part is legal for sale and use on Emissions Controlled Vehicles,
 in all 50 US States, when used in accordance with the manufacturers
 application guide because it has a California Air Resources Board
 (CARB) executive order (EO) number.

MSD's 6AL digital ignition is part of the base model range of MSD ignition systems. This system is ideal for those looking for a 'hotter' spark and improved drivability. The 6AL is similar to the 6A model, however it has a rev limiter as standard. This model is also available in black HERE. If you don't require the rev limiter, the more cost effective 6A model might suit you better, CLICK HERE to take a look.

Features

  • High output with 530 volts and 135mJ of spark energy
  • Efficient components use less current to produce more power
  • Set an rpm limit with two rotary dials in 100 rpm increments
  • Built-in LED for system checks
  • All wires exit through a locked, sealed connector
  • Compatible with 4, 6 or 8-cylinder engines
Brand MSD
Color Red
Current Draw 0.7 Amp per 1,000 RPM
Emission Code 1
Features Rev Limiter
Primary Voltage 520-540 Volts
Product Type Digital 6AL Ignition Control Box
RPM Range 11,000 RPM
Secondary Voltage 45,000 Volts
Spark Energy 145-155 mj per Spark
Voltage Required 12-15 volts, 7 volt start
Warranty Limited 1 Year Warranty (PDF)
Weight and Size 1.7 lbs, 8" L x 4" W x 1.825" H
UPC 085132064250
Part Number 6425

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicles
