NEW

Staubli 20° Banjo Coupling

  • DOT3 or DOT4 compatible
  • Hard anodized 10mm banjo
  • EPDM seals, 20° cranked
  • $327.10
    (Exc. 8% Sales Tax - GA only)
    M10
    EPDM
    4 in stock, immediate dispatch
    +
    MPN
    SPH03.1021/BA/L/KR/BJ
    Staubli
    Information

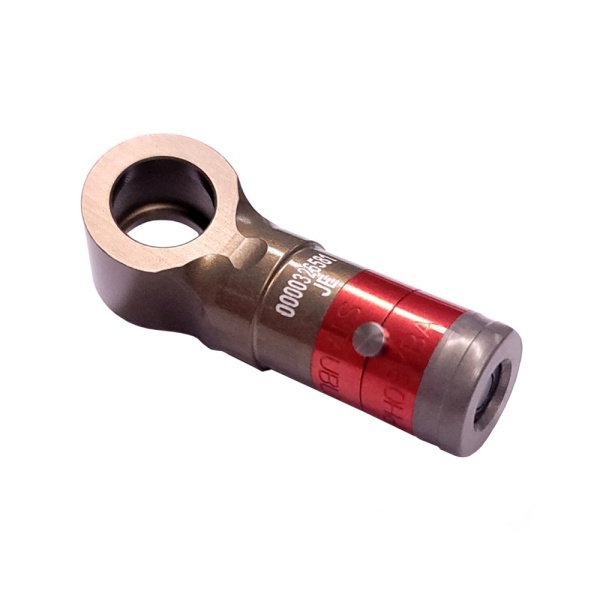

    Staubli 20° Quick Disconnect Banjo Coupling

    Original Staubli quick disconnect coupling, EPDM seals, aluminum, 10mm banjo, 20° cranked. These couplings enable hydraulic lines to be disconnected quickly and cleanly without fluid escaping or air entering the system. They are suitable for use with all Racing brake fluids with a DOT3 or DOT4 rating.

    Air does not penetrate and there is no need to bleed the circuits. These couplings are designed for the most demanding on-board applications, combining resistance, with bayonet locking, compactness and lightness.

    Applications include automotive and motorcycle clutch circuit connections, connection of high pressure hydraulic circuits, cooling of engine oil and water, fuel line connections.

    Technical Specifications

    • Bore diameter: 10mm
    • Maximum working pressure: 350 bar
    • Operating temperatures: -20 to +200°C

    Fluids

    • Brake fluids, oils, mineral greases, nitrogen, gasoline, etc.

    Construction

    • Manufactured in high-resistance aluminum, available with two types of seal and finished in red or yellow anodized aluminium for ease of identification.
    Specification
    BRANDSTAUBLI
    MPNSPH03.1021/BA/L/KR/BJ, SPH03.1021/BA/L/KJ/BJ
