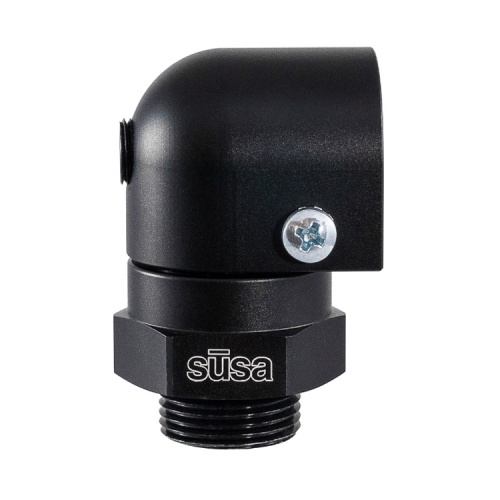

Susa ProLine Port Adaptor Male-Fem M22 x 1.5

Susa ProLine Port Adaptor Male-Fem M22 x 1.5
  Zoom
Susa ProLine Port Adaptor Male-Fem M22 x 1.5Susa ProLine Port Adaptor Male-Fem M22 x 1.5Susa ProLine Port Adaptor Male-Fem M22 x 1.5Susa ProLine Port Adaptor Male-Fem M22 x 1.5
Price:  $54.44(Exc. 8% Sales Tax - GA only)
+

Part Number:  22-M22-90-NPT18

Availability

Incoming, 5-8 days

Incoming, 5-8 days

SUSA

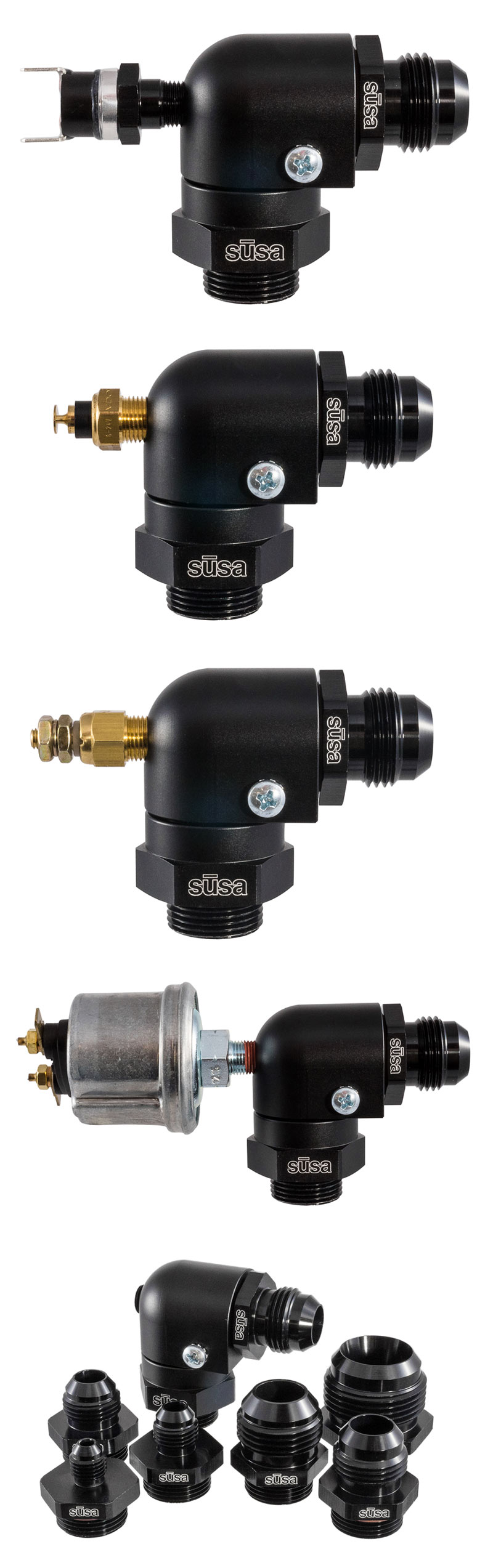

SUSA ProLine Port adaptor, this specialized port adapter fitting is designed to provide sturdy and compact 90 adaptation of the Setrab ProLine port. Fully-clockable 360 fitting accepts all sizes of AN connections (via SUSA ProLine AN adapter fittings, sold separately). Includes a 1/8-27 NPT port for optional installation of a sending unit or eletrical accessory switch in place of port plug and and #8 threaded hole suitable for grounding single-pole senders. Designed for maximal flow and adaptability in a sleek compact stature.

Produced in aircraft-quality aluminum and hard-anodized to stand up to the test of demanding performance environments, whether in a race environment or a high-performance street environment. If you need to discuss anything regarding your oil cooler installation, please email or give us a call.

Priced Each

  • CNC Billet Aluminum Construction with an Anodized Finish

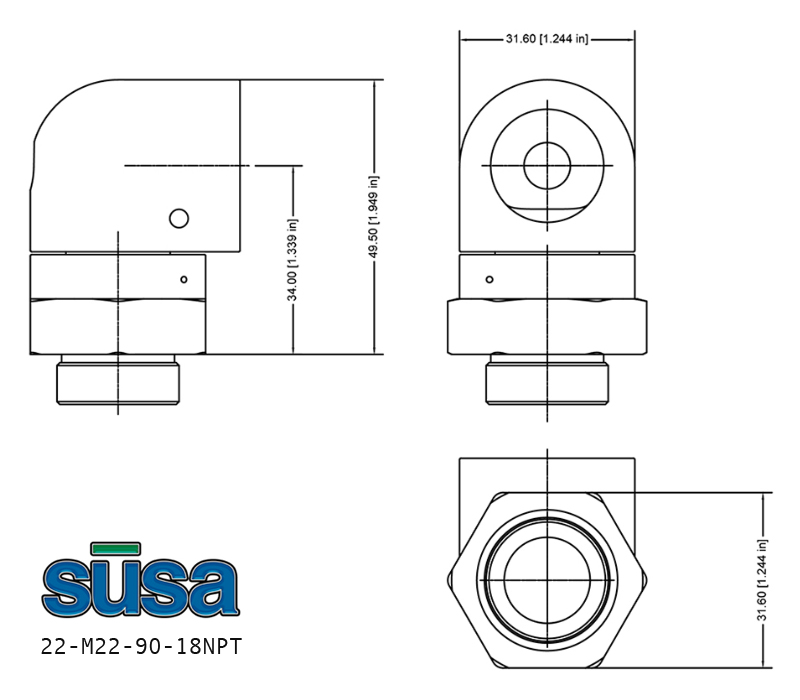

  • M22 x 1.5 Male to M22 x 1.5 Female with an 1/8-27 NPT Port
  • Range of JIC, BSP and MET Adaptor Sizes are also Available
  • Copper Sealing Ring Supplied Ensures 100% Leakproof Seal
 "WARNING: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm.
