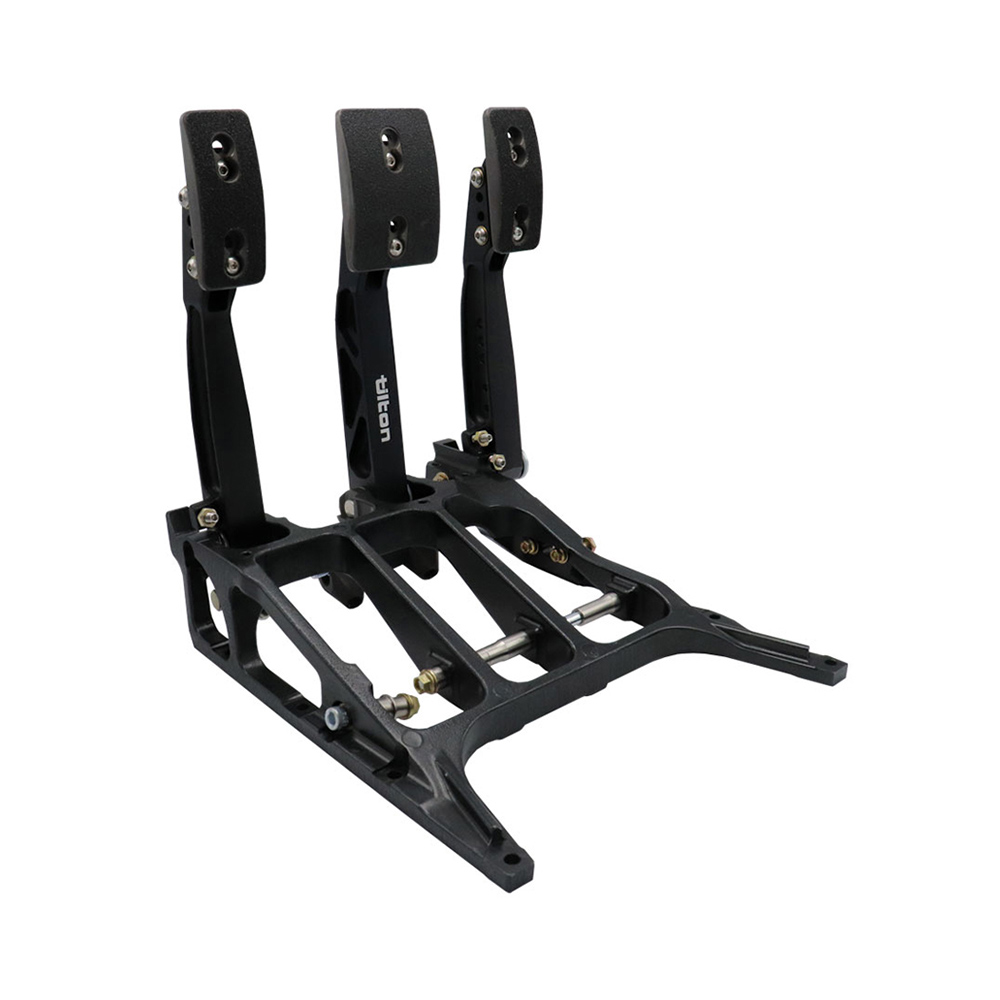

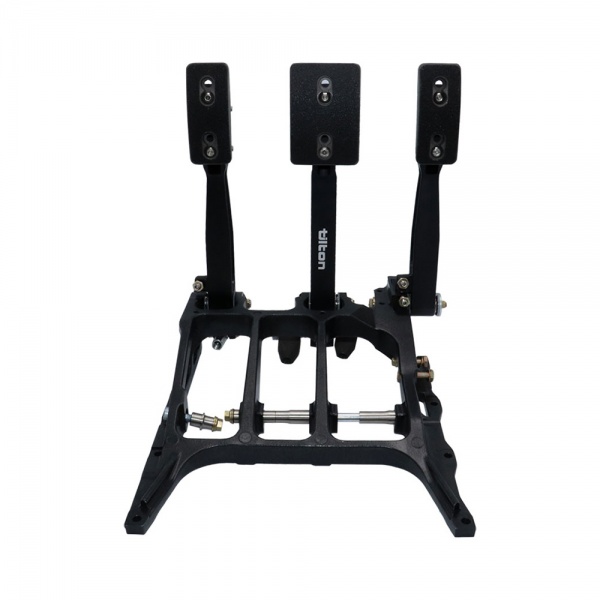

Tilton 850-Series 3 Pedal Under Foot Assembly

Tilton 850-Series 3 Pedal Under Foot Assembly
  Zoom
Tilton 850-Series 3 Pedal Under Foot AssemblyTilton 850-Series 3 Pedal Under Foot AssemblyTilton 850-Series 3 Pedal Under Foot Assembly
Price:  $892.50(Exc. 8% Sales Tax - GA only)
+

Part Number:  72-856
Mounting  Under Foot

Availability



No stock, delayed despatch

Tilton

Installation Drawing (PDF)
Balance Bar Setup Help (PDF)

Tilton’s 850-Series 3-pedal Underfoot pedal assembly. The 850-Series assemblies merge the performance of the 900-Series pedal assembly technology and the renowned value of 600-Series pedal assemblies. Features a high-efficiency balance bar designed to limit motion to the horizontal plane, reducing friction and brake pressure migration. Specifically for use with Tilton 78 or 79-Series master cylinders. Please remember to use metallic hard or braided lines for supply and output when using in-cockpit mounted brake lines to remain fully race compliant.

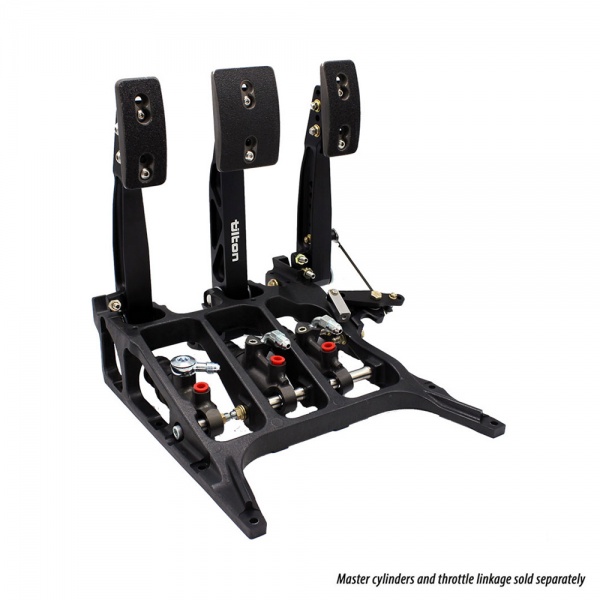

Supplied as Displayed

  • Classic Underfoot Master Cylinder Layout
  • Use with Tilton 78 or 79-Series Master Cylinders
  • Pedal Ratio from 4.8:1 up to 6.1:1 Available
  • Oil-Impregnated Bronze Pedal Pivot Bushings
    • High-efficiency balance bar and pivot-mount master cylinders design
    • Forged aluminum pedals engineered for high rigidity and low weight
    • Adj. pedal ratio (4.8:1 to 6.1:1) enables brake pedal tuning, without changing master cylinder size
    • Foot pads can be adjusted vertically, horizontally and angle to suit individual driver preferences
    • Lightweight and high-strength aluminum frame
    • 7/16” diameter balance bar provides maximum rigidity
    • PTFE coated aluminum clevises allow for increased durability and reduced friction
    • Pedal pivots wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction
    • Throttle linkage kits options for mechanical linkage and Drive-by-Wire systems (sold separately)
