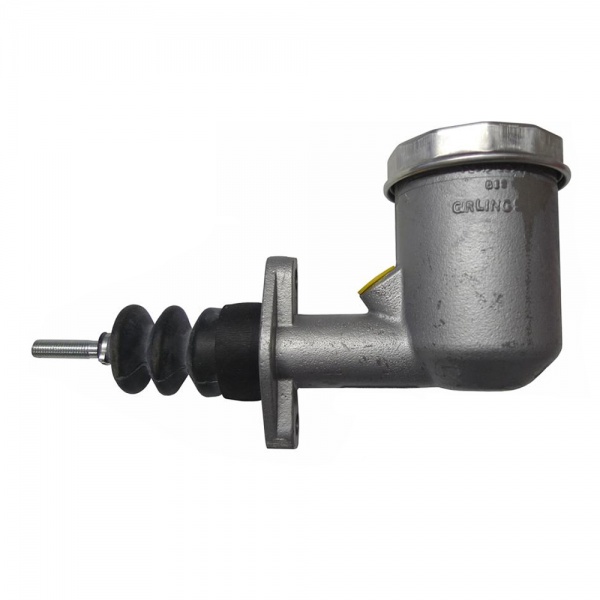

Girling Large Integral Master Cylinders

Girling large integral master cylinders, the larger capactity reservoir version of these highly master cylinders, as fitted to high performance and motorsport vehicles across the world. They feature a large integral fluid reservoir and a single 3/8-24 outlet port, with the industry standard 2.25" flange mounting bolt centres, suitable for a high proportion of all pedal boxes in the market place. They feature a full stroke of 1.375" (35mm) and come supplied with a 5/16" UNF threaded push rod. Available in the 3 most popular sizes, with an approximate weight of 405g.

Priced Each

• AN3 (3/8-24) 45° Front Fluid Outlet Port
• Industry Standard 2.25" Mounting Centres
• Suits, AP, Tilton, Rix and OBP Pedal Boxes
