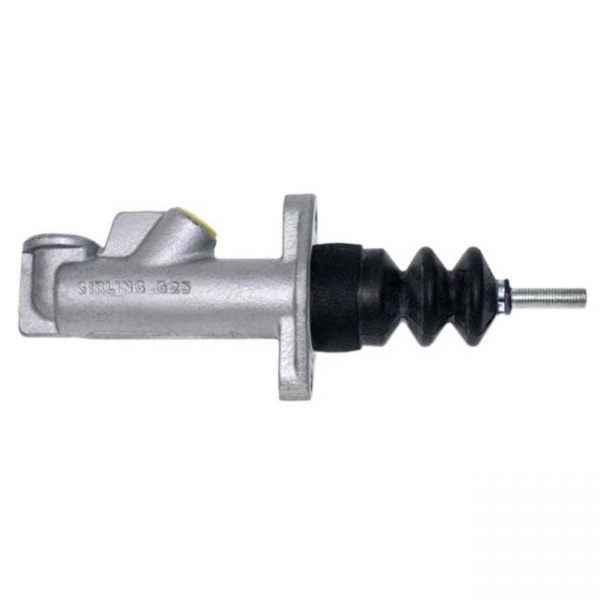

Girling Non-Integral Master Cylinders

Girling Non-Integral Master Cylinders
  Zoom
Price:  $99.43(Exc. 7% Sales Tax - GA only)
+

Part Number:  64067651
Mounting:  2.25" Centres

Girling


Girling aluminium non-integral master cylinders, world reknown for reliability and fitted to thousands of race and rally cars worldwide. Copied by many and these days flowing out of China, you can't beat the original Girling product and we always say don't waste your time and money buying and fitting cheaper alternatives!

They feature a 7/16-18 UNF inlet port, 3/8-24 outlet port, industry standard 2.25" flange mounting bolt centres and are suitable for a high proportion of all pedal boxes and hydraulic handbrakes in the market place. They feature a 35mm stroke and are supplied with a 5/16" UNF threaded push rod. Available in 5 popular sizes, with an approximate weight of 340g.

Priced Each

  • AN4 (7/16-18) Flat Rear Fluid Inlet Port
  • AN3 (3/8-24) 45 Front Fluid Outlet Port
  • Industry Standard 2.25" Flange Centres
  • Suitable for Tilton 600 Series Pedal Boxes
