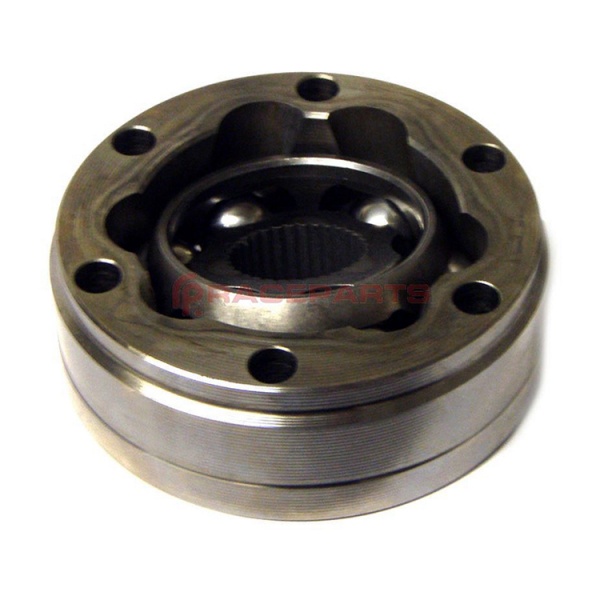

GKN 108mm OD Size 15 Wide Standard CV Joint

GKN 108mm OD Size 15 Wide Standard CV Joint
  Zoom
Price:  $115.61(Exc. 7% Sales Tax - GA only)
+

Part Number:  7153150105581
Unit of Issue:  Each
Joint Diameter:  108mm OD
Joint Width:  40mm
Joint Splines:  28 splines
Mount Holes:  10mm ID
Bolt Hole PCD:  6 x 94mm
Joint Plunge:  +/-14mm

Availability:



4 in stock, immediate despatch

GKN


GKN Motorsport S15 108mm wide standard CV joints. These plunging constant velocity joints feature a 108mm OD and and have been developed by GKN Motorsport to ensure easy rotational liner motion at for wheel or differential applications. With over 30 years of continuous development of GKN Driveline products, these GKN Motorsport plunging CV joints offer high levels of reliability and joint service life.

  • Joint Width: 40mm
  • Joint Spline: 28
  • Bolt Holes: 10mm x 6
  • Plunging joints are most often used as the inboard joint (transmission side) on FWD vehicles and on the inboard and outboard of RWD and AWD applications with independent suspension. The plunge on these joints is +/-14mm. GKN are the largest designer and manufacturer of driveline solutions in the world, which enables GKN Motorsport to offer an unsurpassed range of standard, lightened and easy motion constant velocity joints able to cope with the most demanding applications. For use with the GKN MS6N001 or the MS6N011 high angle JointFast boots. To discuss your requirements, please email or give us a call.

  • The plunge on these CV Joints is +/-14mm
  • Standard Joints as used for Motor Racing
  • Use with the GKN MS6N001 JointFast Boot
