Goodridge Aluminum JIC Female Blanking Cap

$2.09
(Exc. 8% Sales Tax - GA only)
-03
-04
-06
-08
-10
-12
-16
-20
Order today, dispatch in 3-7 days
+
SKU
AN929-03D
Thread Size(s)
-03 to -20 JIC (UNF)
Goodridge
Information

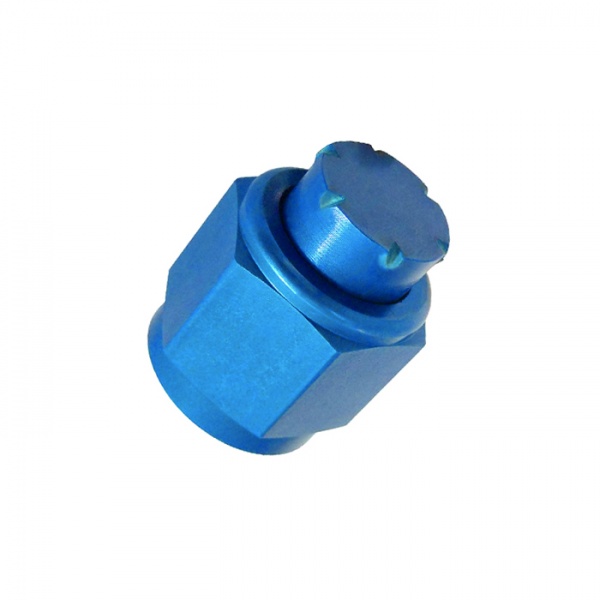

Goodridge AN Female Blanking Caps - Blue

Goodridge AN female blanking caps, with a concave internal seated bung and external socket, manufactured in aluminum with a blue anodized finish for corrosion protection. Sealed on the concave seat, with AN female threads in a size range from -03 through to -20 JIC (UNF).

Extremely useful to blank off fuel, coolant and oil lines on engines, gearboxes, master cylinders, inlet manifolds, axle cases and anywhere the relevantly sized threaded outlet needs to be safely closed off. Also available in various sizes, in Goodridge's classic BLACK or RED alternatives.

Key Features

  • Suitable for performance or motorsport vehicles
  • Perfect solution for blanking off hoses or fittings
  • Compatible with all other quality manufacturers

JIC Thread Sizes

-02 JIC (5/16-24 UNF)
-03 JIC (3/8-24 UNF)
-04 JIC (7/16-20 UNF)
-05 JIC (1/2-20 UNF)
-06 JIC (9/16-18 UNF)
-08 JIC (3/4-16 UNF)
-10 JIC (7/8-14 UNF)
-12 JIC (1 1/16-12 UNF)
-16 JIC (1 5/16-12 UNF)
-20 JIC (1 5/8-12 UNF)
-24 JIC (1 7/8-12 UNF)



Specification
BrandGoodridge
MPNAN929-03D, AN929-04D, AN929-06D, AN929-08D, AN929-10D, AN929-12D, AN929-16D, AN929-20D
