Goodridge AN 90° Forged Female Swivel Fittings

$31.28
(Exc. 8% Sales Tax - GA only)
-03
-04
-06
-08
Order today, dispatch in 3-7 days
+
Part Number
6090-03D
Thread Size(s)
-03 to -08 JIC (UNF)
Goodridge
Information

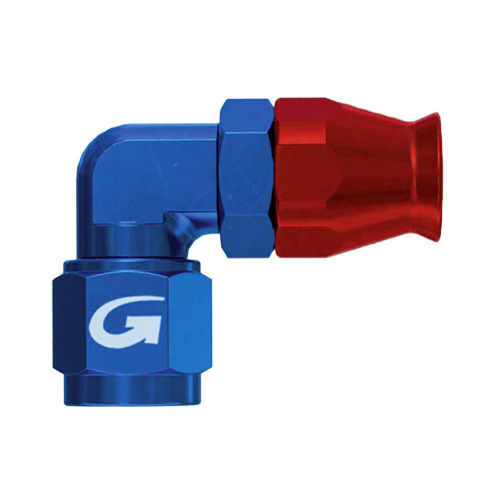

Goodridge 90° forged female swivel fittings, in a useful range of sizes with female threads and a concave seats. Manufactured in forged aluminum for increased robustness, with an anodized finish for corrosion protection, for use with Goodridge 600 or 700 series PTFE lined hoses.

These reusable fittings can be taken apart, cleaned and reassembled with a new Goodridge olive. Sizes available from -03 JIC (3/8-24 UNF) to -08 JIC (3/4-16 UNF), perfect for you to custom create all your brake, clutch, fuel and oil hoses around your vehicle.

Priced each

  • For brake, clutch, fuel and oil hose creation
  • Suitable for performance or motorsport vehicles
  • Reassemble and reuse with a new Goodridge olive
  • Compatible with all other quality manufacturers

600 Series Reusable Fittings

  • The body seals to the hose using an olive and socket as shown
  • Replacement olives and sockets are available separately
