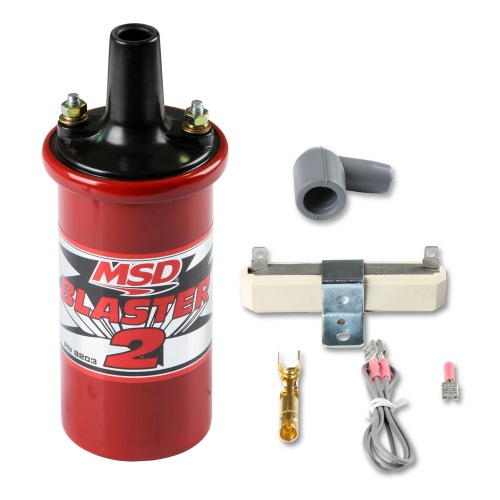

MSD Blaster II Series Ignition Ballast Coil Kit Red

MSD Blaster II Series Ignition Ballast Coil Kit Red
  Zoom
Price:  $74.58(Exc. 7% Sales Tax - GA only)
+

Part Number:  8203

Availability



No stock, delayed despatch

MSD Ignition

Installation Instructions (PDF)
Emissions
 This part is legal for sale and use on Emissions Controlled Vehicles,
 in all 50 US States, when used in accordance with the manufacturers
 application guide because it has a California Air Resources Board


(CARB) executive order (EO) number. C.A.R.B. EO #D-40-37

 See Emissions Details

MSD Blaster II Series high performance ignition coil in red, supplied with ballast resistor. MSD's famous red canister coils! If your application uses a points distributor, the ballast must be used. Late-model electronic ignitions or an MSD Ignition do not require the ballast.

If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6, or 7, the Blaster Coil line is the right choice. Our Blaster Coils are designed for improved spark output! Special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil-filled metal canister.

The Blaster Coil is designed to mount in most factory canister coil mounts. MSD also offers a Chrome Coil Bracket, PN 8213. It is recommended to mount the PN 8202, PN 82023, and 8223 coils in an upright position.

Features

  • Improved output coil for electronic ignitions, Blaster Ignition or MSD 5, 6, and 7 Series
  • Supplied with two spark plug wire boots, terminals and a ballast resistor (required if used with stock points ignition)
  • Alkyd tower with high dielectric properties is less prone to carbon tracking
  • 100:1 turns ratio and lower primary resistance produce high voltage output
  • MSD Red Metal canister is filled with a premium grade oil for cooling
  • CARB E.O. Approved
BrandMSD
Emission Code1
Inductance8 mH
Maximum Voltage45,000 Volts
Peak Current140 mA
Primary Resistance0.7 OHMs
Product TypeCoil
Secondary Resistance4.5 K OHMs
Spark Duration350 uS
Turns Ratio100:1
WarrantyLimited 1 Year Warranty (PDF)
UPC085132082032
Part Number8203

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

  • 1965 and older U.S. manufactured California Certified vehicles
  • 1967 and older U.S. manufactured Federally Certified vehicles
  • 1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle
 "WARNING: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm.
