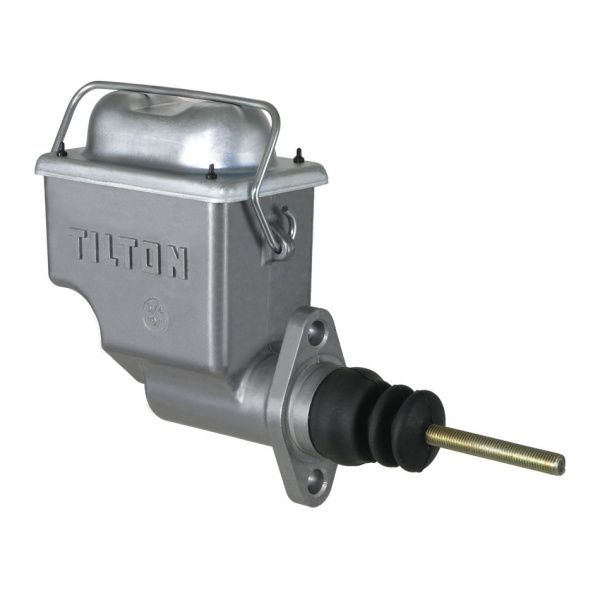

Tilton 73-Series Hydraulic Master Cylinders

Tilton 74-series alloy hydraulic master cylinders. 73-Series master cylinders are designed for applications that require large fluid capacity in a leak-proof integral reservoir. These cylinders are also unique in that they may be temporarily inverted without loss of fluid. Fluid chamber is completely sealed from the outside environment while still allowing fluid level changes. Available in the most popular bore sizes, these cylinders are an affordable solution for the budget racer and tits the Tilton 600-Series pedal assemblies/balance bars. The master cylinder has a 1/8 NPT fluid port which can be converted to -3 fittings if required. Integral 295ml reservoir provides ample fluid capacity and the industry standard 2.25" (57mm) (centre-to-centre) flange mounts apply, suitable for brake, clutch or hydraulic handbrake operation.

Priced Each

• 1.1" (28mm) Stroke for Most Applications
• 1/8 NPT Front Horizontal Fluid Outlet Port
• Bare Cylinder Weight Approximately 640g
