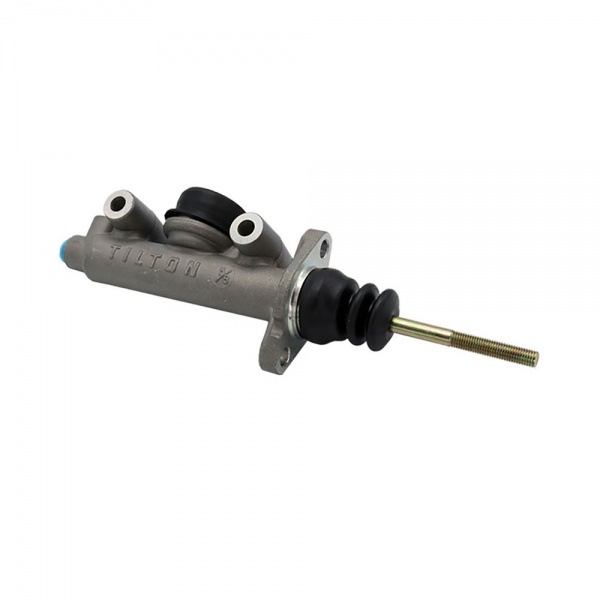

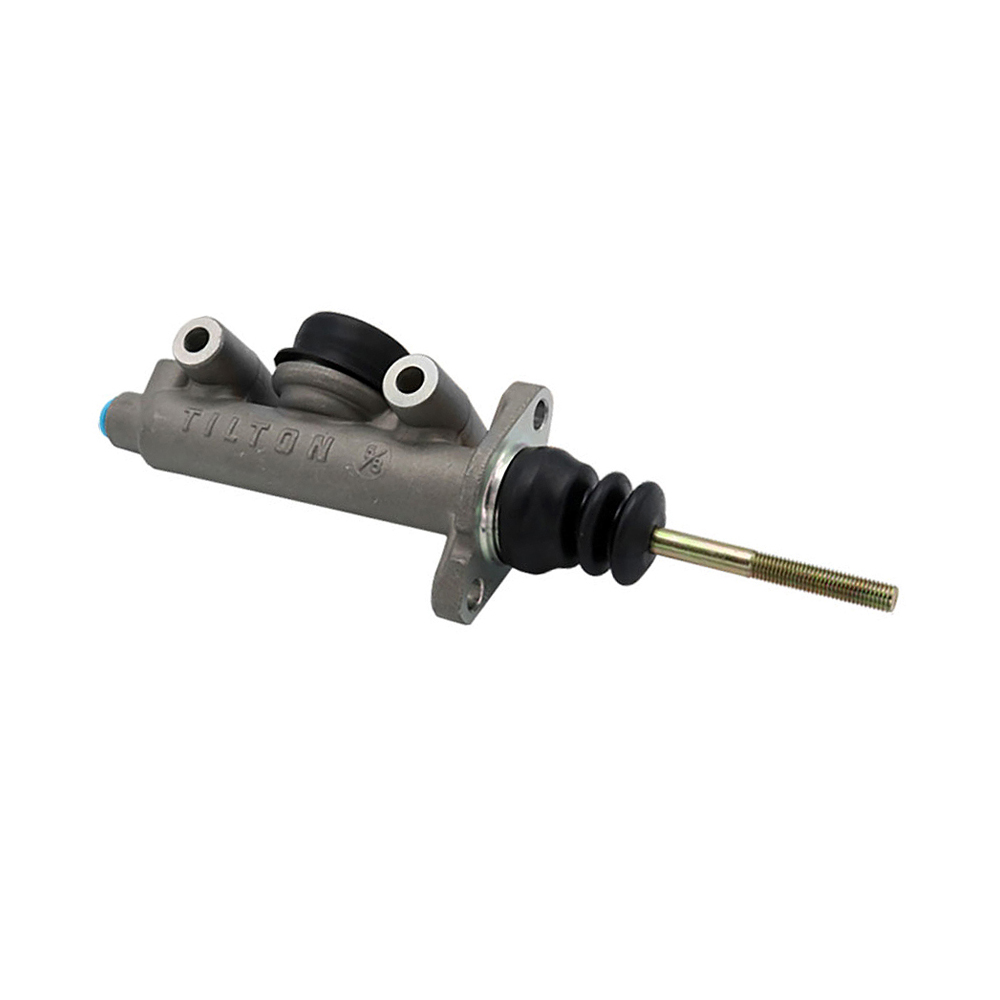

Tilton 74-Series Hydraulic Master Cylinders

Tilton 74-Series Hydraulic Master Cylinders
  Zoom
Price:  $68.00(Exc. 8% Sales Tax - GA only)
+

Part Number:  74-625

Tilton

Installation Drawing (PDF)

Tilton 74-series alloy hydraulic master cylinders. These non-integral 74-Series master cylinders offer great flexibility at an affordable price. Continuously improved since their introduction in 1986, the venerable 74-Series master cylinder has become a trusted favorite of car builders and race teams due to their reliability and value. They feature two AN3 (3/8-24 UNF) ports, with 1 vertical and 1 horizontal to the rear of the cylinder, typically with the vertical one used with a bleed nipple. These master cylinders are to be used in conjunction with the range of direct fit reservoirs and if you are fitting for the first time, a full installation kit is required. Industry standard 2.25" (57mm) (centre-to-centre) flange mount, suitable for brake, clutch or hydraulic handbrake operation.

Priced Each

  • 1.1" (28mm) stroke to Suit Most Applications
  • 3/8 UNF Horizontal and Vertical Outlet Ports
  • Bare Cylinder Weight Approximately 430g
