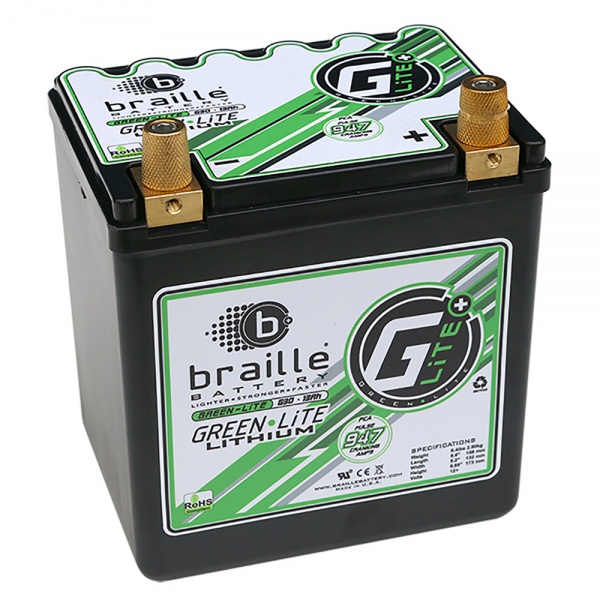

Braille G30 GreenLite Lithium Battery. The G30 battery weighs 6.2lbs and is an automotive spec model, designed for the Import Tuner of 4 and 6 cylinder street cars, up to small block V8 hot rods and similar applications with low to moderate electrical demand. The G30 is the common upgrade for those who run the Braille B3121 lightweight AGM battery and is also the same size as the PC925, but is less than 1/4 the weight, more power and capacity, and lasts up to 5 times longer! Fitted with horizontal and vertical terminals, with SAE conversion posts included. Over 50% lighter, Braille Lithium delivers a higher, cleaner voltage which improves the performance of every electrical component and has shown to provide:
- Quicker starting, a full volt higher than lead and less voltage drop during cranking
- Improved engine management and data logging performance, through more stable voltage
- Less horsepower draw from the alternator due to efficient charging, 5x faster than lead
- Lasts 3-5 times longer, especially under the harshest environments
- Much more reliable, with the lowest failure rates on the market
- Significant weight savings, typically up to 1/4 the weight
What's more these batteries don’t self-discharge, so if the battery is disconnected (no draw or via power disconnect switch), they can sit for over a year and still have over 13 volts to start the vehicle.
Need to clamp your battery down safely on a custom installation? Use one of Braille's 3118 battery brackets, they're suitable for use with Braille B3121, B3121C, G30 and ML30C batteries, click on the product below in the 'related products' list or CLICK HERE to take a look.
| BATTERY | BCI GROUP | LENGTH | WIDTH | HEIGHT | WEIGHT | POLARITY |
| G30 | 30 | 7" / 178mm | 5.2" / 132mm | 6.9" / 177mm | 6.2lbs / 2.8KG | RIGHT SIDE +VE |
| VOLTAGE | FULL VOLTAGE CHARGE | PULSE CRANKING AMPS (PCA) | AMP HOURS (AH) | AMP HOURS (LAH)* | RESERVE CAPACITY (RC) |
| 12 | 13.8 | 947 | 15 | 45 | > 45 MINS |
* Lithium Amp/Hour, Lead Acid Equivalent
Braille GreenLite lithium batteries come in variety of sizes that range from small displacement motorcycles (G5, G7 and G9) up to automotive applications with the G20 and G30 models. (Call us at Raceparts USA to make sure these models are made for your application if not clear based on product description). A Braille lithium battery upgrade is 100% compatible with ALL standard charging systems and can also be used in race cars with a 'total loss' (no alternator) setup. A lithium charger is required to keep batteries charged on vehicles with a parasitic draw (computer, alarm, etc.) but with no draw, Braille lithium batteries can sit for a year and still be at 90% state of charge.
Braille is the only American Made "Race Grade" lithium battery on the market used by more OEM factory and purpose built race cars, professional race series and also spec lithium battery in several cases around the world! With an annual failure rate of less than 1/2 of 1% (those caused by abuse, improper maintenance, etc.), you can have the most reliable lithium battery on the market with over a decade of actual use on race and street cars for any vehicle you have!! There is a difference between the other 'consumer grade' lithium batteries with a bunch of 'bells and whistles' that don't match up to the performance and reliability of Braille 'race grade' batteries....our pedigree, racing history and customers speaks for itself!! Call Raceparts USA directly with any questions you may have as to which battery is right for your vehicle based on goals, usage, goals, etc.!
