GKN 94mm OD Size 10 Lightweight CV Joint

GKN 94mm OD Size 10 Lightweight CV Joint
  Zoom
Price:  $154.20(Exc. 7% Sales Tax - GA only)
+

Part Number:  MS3J003
Unit of Issue:  Each
Joint Diameter:  94mm OD
Joint Width:  32mm
Joint Splines:  33 splines
Mount Holes:  8.2mm ID
Bolt Hole PCD:  6 x 78mm PCD
Joint Plunge:  +/- 8mm

Availability:



8 in stock, immediate despatch

GKN

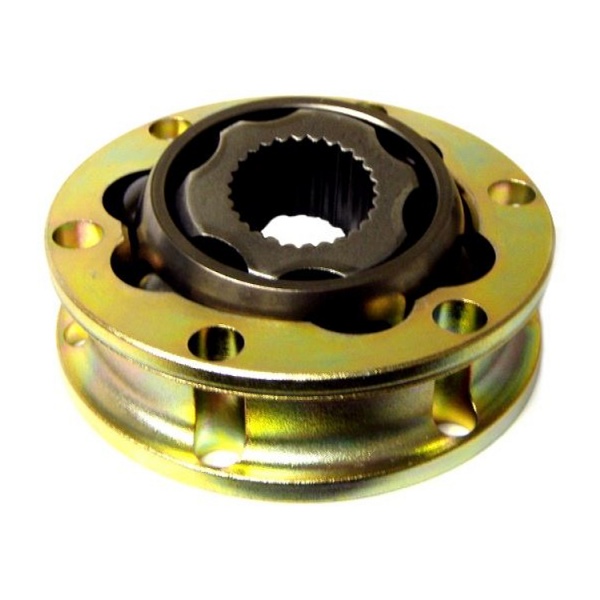

GKN Motorsport size 10 94mm lightweight CV joints. These plunging constant velocity joints feature a 94mm OD and and have been developed by GKN Motorsport to ensure easy rotational liner motion at for wheel or differential applications. With over 30 years of continuous development of GKN Driveline products, these GKN Motorsport plunging CV joints offer a significant weight reduction, cooler running temperatures and enhanced joint life through higher performance.

  • Joint Width: 32mm
  • Joint Spline: 33
  • Bolt Holes: 8mm x 6
  • Application: Formula Ford (easy motion - lightweight)

    Plunging joints are most often used as the inboard joint (transmission side) on FWD vehicles and on the inboard and outboard of RWD and AWD applications with independent suspension. The plunge on these joints is +/- 8mm. GKN are the largest designer and manufacturer of driveline solutions in the world, which enables GKN Motorsport to offer an unsurpassed range of standard, lightened and easy motion constant velocity joints able to cope with the most demanding applications. To discuss your requirements, please email or give us a call.

  • Zinc Passivated Finish for Protection
  • 20% Weight Saving over a Standard Joint
  • Use with the GKN MS6J002 Joint Fast Boot
