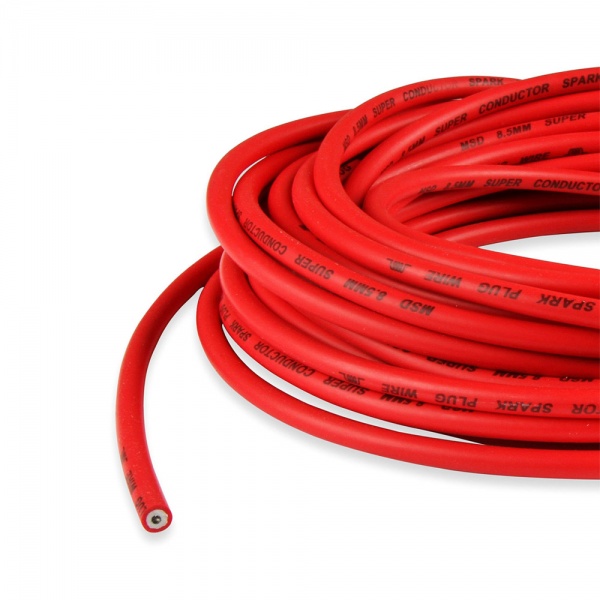

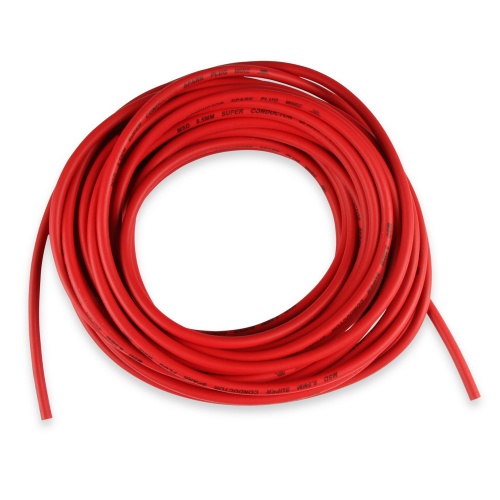

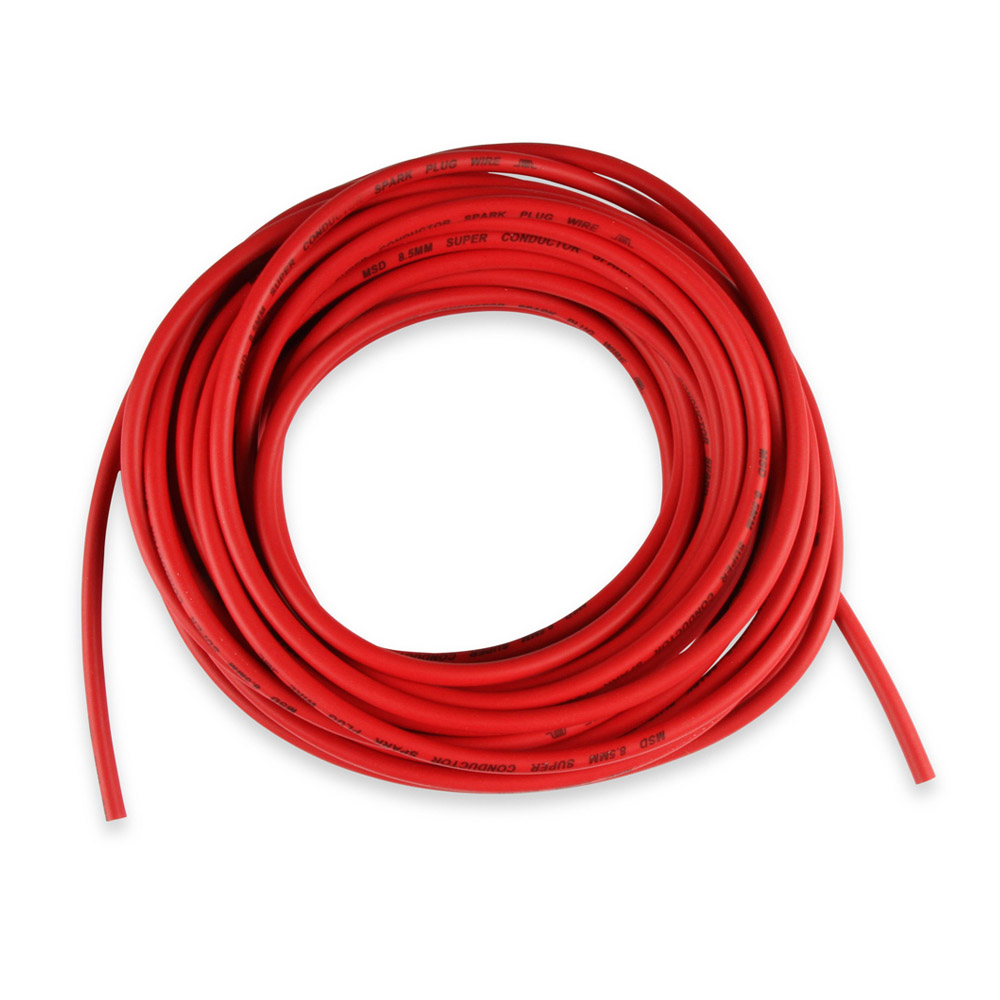

MSD 8.5mm Super Conductor ignition wire in red, 50 foot in length. Engineered from the inside out, the 8.5mm offers everything you have ever wanted in a wire, with incredibly low resistance without electronic interference! In a single 12" length of Super Conductor Wire there is only 40-50 ohms of resistance! That is the lowest resistance of any helically wound wire. To accomplish this, we use a copper alloy conductor due to it's great voltage carrying capabilities.
The low resistance results in less loss in spark energy so more reaches the spark plug. The conductor is wound extremely tight around a special center core. So tight in fact, that there is over 40 feet of conductor wrapped into a single foot of plug wire. This winding procedure, combined with a ferro-magnetic impregnated center core, produces an extremely effective Electro Magnetic Interference (EMI) 'choke'. This choke, or suppression capability, keeps the EMI inside the wire where it cannot interfere with other electronics on your vehicle. The outer sleeve that surrounds the conductor assembly is just as impressive. A proprietary blend of silicone and synthetic material produce a sleeve that is highly resistant to high heat as well as abrasion and tears.
- Low Resistance 40-50 ohms per foot
- Suppresses Electro Magnetic Interference
- Red 8.5mm Super Conductor Wire 50ft Bulk

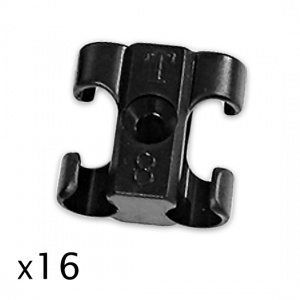

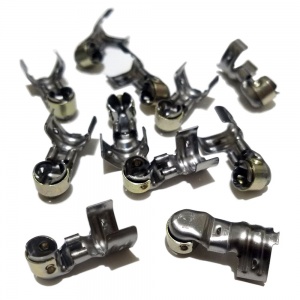

The MSD's 8.5mm spark plug terminals feature Dual Crimp terminals. As the name implies, the terminals feature two crimps; one for the sleeve of the wire and another separate crimp to grasp the conductor. The MSD's 8.5mm spark plug terminals feature Dual Crimp terminals. As the name implies, the terminals feature two crimps; one for the sleeve of the wire and another separate crimp to grasp the conductor. MSD's range of boots, crimps, clamps and separators also available in this category.
This part is legal for sale or use on Emission Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
