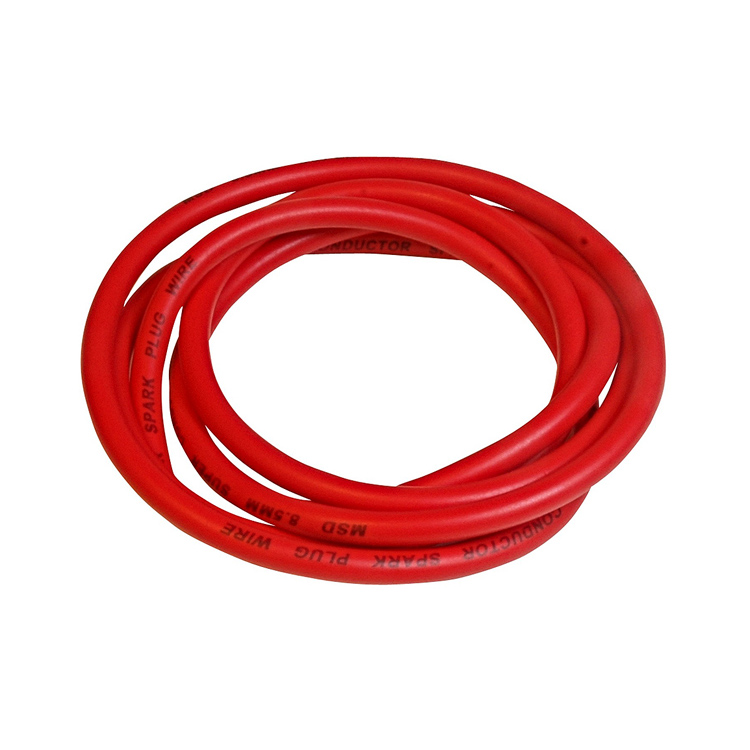

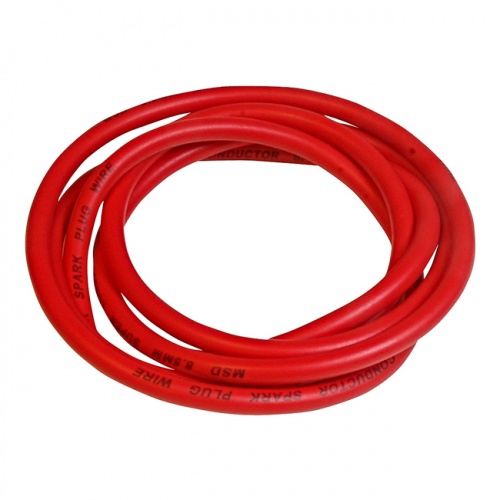

MSD 8.5mm Super Conductor Wire Red 6 ft

MSD 8.5mm Super Conductor Wire Red 6 ft
  Zoom
 MSD 8.5mm Super Conductor Wire Red 6 ftMSD 8.5mm Super Conductor Wire Red 6 ft
Price:  $25.29(Exc. 7% Sales Tax - GA only)
+

Part Number:  34039

Availability



No stock, delayed despatch

MSD Ignition

Installation Instructions (PDF)
Emissions
 This part is legal for sale and use on Emissions Controlled Vehicles,
 Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use
 Only Vehicles because it does not affect vehicle emissions and is
 not covered by emissions regulations.
 See Emissions Details

MSD 8.5mm Super Conductor ignition wire in red, 6 foot in length. Engineered from the inside out, the 8.5mm offers everything you have ever wanted in a wire, with incredibly low resistance without electronic interference! In a single 12" length of Super Conductor Wire there is only 40-50 ohms of resistance! That is the lowest resistance of any helically wound wire. To accomplish this, we use a copper alloy conductor due to it's great voltage carrying capabilities.

The low resistance results in less loss in spark energy so more reaches the spark plug. The conductor is wound extremely tight around a special center core. So tight in fact, that there is over 40 feet of conductor wrapped into a single foot of plug wire. This winding procedure, combined with a ferro-magnetic impregnated center core, produces an extremely effective Electro Magnetic Interference (EMI) 'choke'. This choke, or suppression capability, keeps the EMI inside the wire where it cannot interfere with other electronics on your vehicle. The outer sleeve that surrounds the conductor assembly is just as impressive. A proprietary blend of silicone and synthetic material produce a sleeve that is highly resistant to high heat as well as abrasion and tears.

The MSD's 8.5mm spark plug terminals feature Dual Crimp terminals. As the name implies, the terminals feature two crimps; one for the sleeve of the wire and another separate crimp to grasp the conductor. The MSD's 8.5mm spark plug terminals feature Dual Crimp terminals. As the name implies, the terminals feature two crimps; one for the sleeve of the wire and another separate crimp to grasp the conductor. MSD's range of boots, crimps, clamps and separators also available in this category.

Features:

  • Low Resistance 40-50 ohms per foot
  • Suppresses Electro Magnetic Interference
  • 8.5mm Red Super Conductor Wire 6ft Long

Application Universal
Brand MSD
Color Red
Core Copper
Emission Code 5
Product Type Spark Plug Wires
Resistance 40-50 OHMs per Foot
Warranty Limited 1 Year Warranty (PDF)
Wire Diameter 8.5mm
Wire Series 8.5 Super Conductor
UPC 081532340392
Part Number 34039

This part is legal for sale or use on Emission Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
