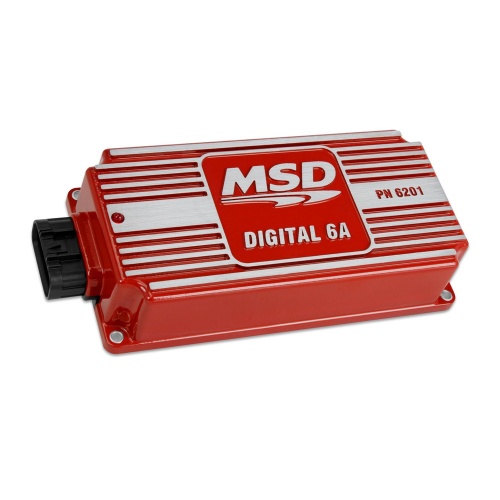

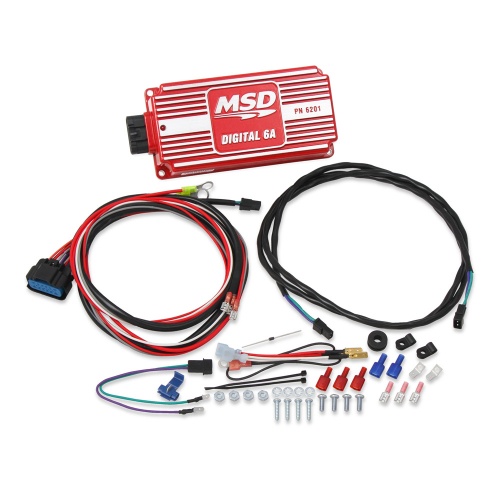

MSD Digital 6A Ignition Controller 6201 Red

MSD Digital 6A Ignition Controller 6201 Red
  Zoom
MSD Digital 6A Ignition Controller 6201 RedMSD Digital 6A Ignition Controller 6201 RedMSD Digital 6A Ignition Controller 6201 RedMSD Digital 6A Ignition Controller 6201 Red
Price:  $291.95(Exc. 8% Sales Tax - GA only)
+

Part Number:  6201

Availability



No stock, delayed despatch

MSD Ignition

Installation Instructions (PDF)
Emissions
 This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 US States, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) executive order (EO) number.

MSD's 6A digital ignition is the base model in red, but also available HERE in black. This system is ideal for those looking for a 'hotter' spark and improved drivability. This unit does not include a rev limiter and one cannot be added. If you need a rev limiter then the 6AL is a more appropriate, CLICK HERE to take a look.

Features

  • Easy Starts
  • Smooth Idle
  • Quick throttle response
  • Built-in LED for system checks
  • Full, capacitive discharge ignition power throughout the RPM range
  • Compatible with 4, 6 or 8 - cylinder engines
  • Tach output wire

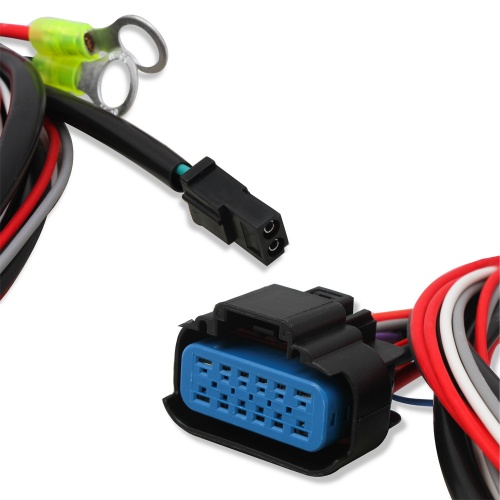

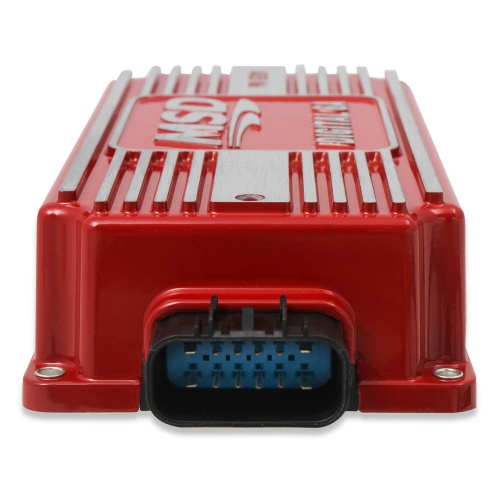

  • Sealed, locking connector
BrandMSD
ColorRed
Current Draw1.1 Amp per 1,000 RPM
Emission Code1
FeaturesNo Rev Limiter
Primary Voltage520-540 Volts
Product TypeDigital 6A Ignition Control Box
RPM Range15,00 RPM with 14.4 volts
Secondary Voltage45,000 Volts
Spark Energy135-145 mJ per spark
Voltage Required12-15 Volts, 7 Volt Start
WarrantyLimited 1 Year Warranty (PDF)
Weight and Size1.7 lbs, 8" L x 4" W x 1.825" H
UPC085132062010
Part Number6201

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicles
