MSD Blaster 3 Ignition Coil Extra Tall Tower

MSD Blaster 3 Ignition Coil Extra Tall Tower
  Zoom
 MSD Blaster 3 Ignition Coil Extra Tall TowerMSD Blaster 3 Ignition Coil Extra Tall Tower
Price:  $67.57(Exc. 8% Sales Tax - GA only)
+

Part Number:  8223

Availability

No stock, delayed despatch

No stock, delayed despatch

MSD Ignition

Installation Instructions (PDF)
Emissions
 This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 US States, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) executive order (EO) number:
  C.A.R.B. EO# D-40-37

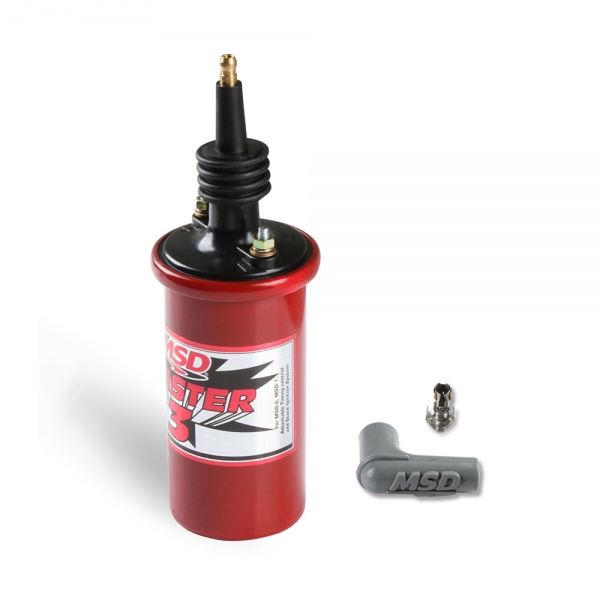

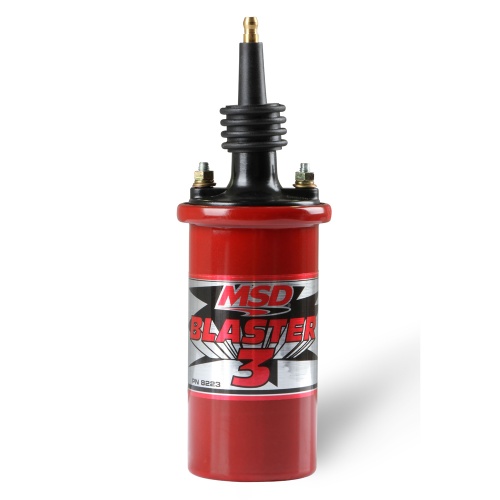

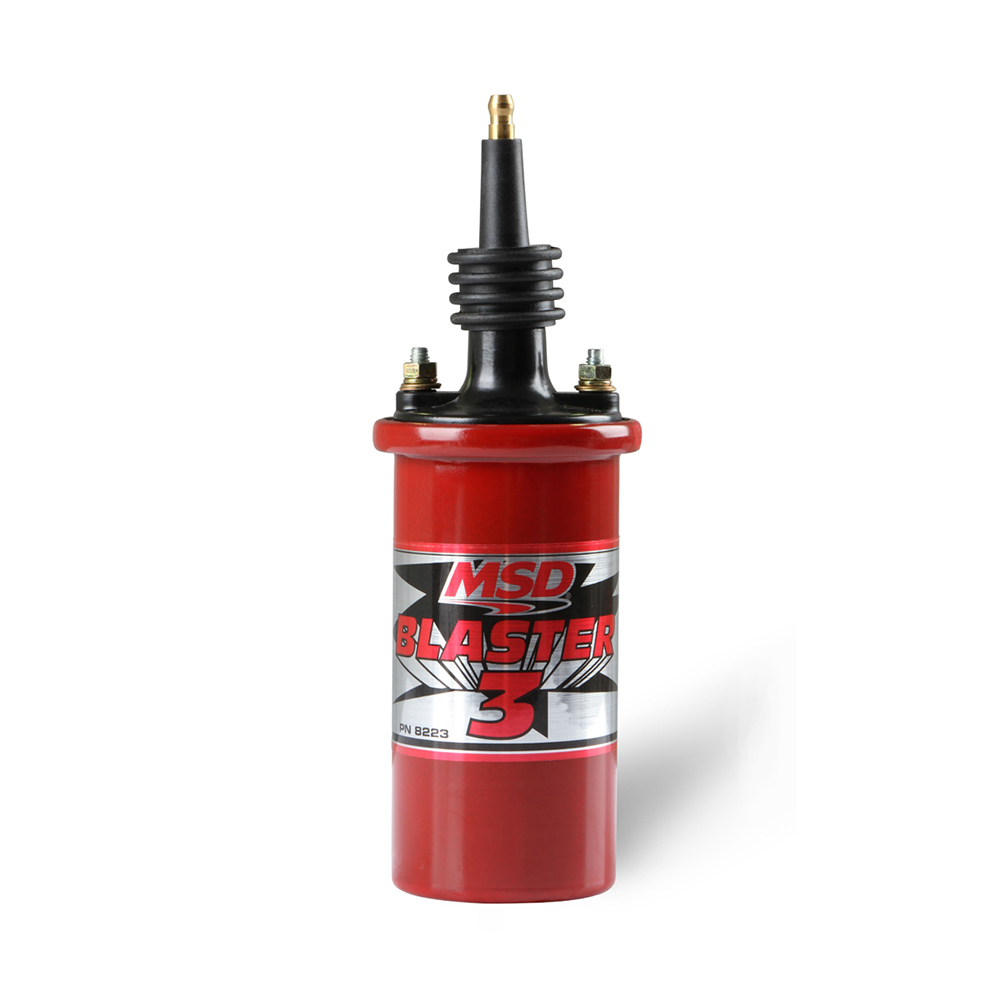

MSD Blaster 3 Series high performance ignition coil in red. The Blaster 3 Coil features an extra-tall tower design to improve the coil wire attachment and spark isolation. Supplied with a 90-degree terminal and boot.

If you are looking to upgrade your stock coil or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6, or 7, the Blaster Coil line is the right choice. Our Blaster Coils are designed for improved spark output! Special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil-filled metal canister.

The Blaster Coil is designed to mount in most factory canister coil mounts. MSD also offers a Chrome Coil Bracket, PN 8213. It is recommended to mount the PN 8202, PN 82023, and 8223 coils in an upright position. The High Vibration Coil, PN 8222, can be mounted in any position due to its epoxy potting compound.

Features

  • Extra tall secondary tower for secure coil wire connection
  • Improved output coil for electronic ignitions and MSD Ignitions (ballast resistor required for points)*
  • 100:1 turns ratio and lower primary resistance produce high voltage output
  • MSD Red metal canister is filled with a premium grade oil for cooling
  • Supplied complete with a 90 spark plug style terminal and boot
  • CARB E.O. Approved
BrandMSD
C.A.R.B. EO#D-40-37
Emission Code1
Inductance8 mH
Maximum Voltage45,000 Volts
Peak Current140 mA
Primary Resistance0.7 OHMs
Product TypeCoil
Secondary Resistance4.5K OHMs
Spark Duration350 uS
Turns Ratio100:1
Warranty Limited 1 Year Warranty (PDF)
UPC085132082230
Part Number8223

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicles
