MSD Blaster SS Ignition Coil Red

MSD Blaster SS Ignition Coil Red
  Zoom
 MSD Blaster SS Ignition Coil RedMSD Blaster SS Ignition Coil Red
Price:  $74.58(Exc. 7% Sales Tax - GA only)
+

Part Number:  8207

Availability:



In stock, immediate despatch

MSD Ignition

Installation Instructions (PDF)
Emissions
 This part is legal for sale and use on Emissions Controlled Vehicles,
 in all 50 US States, when used in accordance with the manufacturers
 application guide because it has a California Air Resources Board
 (CARB) executive order (EO) number.
 See Emissions Details

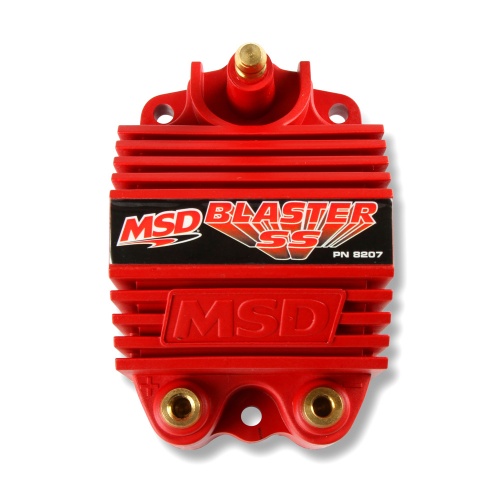

MSD Blaster SS high performance ignition coil in red, also available in black HERE. Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps of current and maximum voltage output of 40,000 volts!

Features

  • Improved output coil for electronic ignitions and MSD Ignitions
  • Efficient winding design and assembly creates a compact housing
  • Primary and secondary windings are encased in Ciba polyurethane
  • 70:1 turns ratio and lower primary resistance produce high voltage output
  • Tough, rigid housing with a tall tower and brass primary terminals

Note: If installing the Blaster SS Coil to a points distributor or a non-current limiting ignition system without an MSD Ignition, a 0.8 ohm ballast resistor is required (MSD PN 8214). The resistor should wire in series along with any factory resistors on the positive coil wire.

BrandMSD
C.A.R.B EO #D-40-37
Coil TypeBlaster
ColorRed
Emission Code1
Inductance6.9 mH
Maximum Voltage40,000 Volts
Peak Current300 mA
Primary Resistance0.355 OHMs
Product TypeIgnition Coil
Secondary Resistance4.4 K OHMS
Spark Duaration220 uS
Turns Ratio70:1
WarrantyLimited 1 Year Warranty (PDF)
Weight1.08 lbs
UPC085132082070
Part Number8207

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.

The following vehicles are considered Emissions Controlled Vehicles:

1966 and newer U.S. manufactured California Certified vehicles
1968 and newer U.S. manufactured Federally Certified vehicles
1968 and newer Foreign manufactured vehicle
