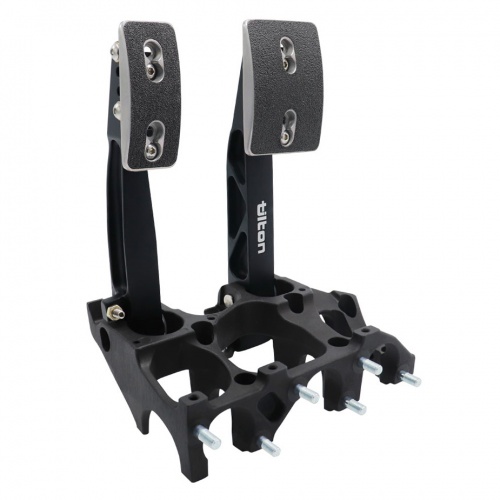

Tilton 600-Series 2 Pedal Under Foot Assemblies

Tilton 600-Series 2 Pedal Under Foot Assemblies
Tilton 600-Series 2 Pedal Under Foot AssembliesTilton 600-Series 2 Pedal Under Foot AssembliesTilton 600-Series 2 Pedal Under Foot Assemblies
Price:  $548.25(Exc. 8% Sales Tax - GA only)

Part Number:  72-617
Mounting  Under Foot


In stock, immediate despatch

In stock, immediate despatch


72-617 Installation Drawing (PDF)
72-618 Installation Drawing (PDF)
Installation Instructions (PDF)
Balance Bar Setup Help (PDF)

Tilton 72-617 and 72-618 under foot 2 pedal assemblies. These two kits offer one assembly for those who don't need a throttle pedal, perhaps for vehicles with electronic 'fly by wire' control, or just because it's easier not to change what's there already. The second kit is suitable for those with newer dual-clutch transmissions or old school automatic transmission vehicles or just any setup not needing to replace the clutch pedal, but wanting the bias braking capability (see picture 3 with cylinders and optional throttle linkage - available separately). They feature a low profile underfoot master cylinder layout, typically used with a false floor to conceal the cylinders and plumbing. The latest 600-Series pedal assemblies have been re-engineered to incorporate features from the range topping 900-Series, yet remaining available at a more affordable price point for the clubmen racer. They provide exceptional driver feedback and include features such as ramps to prevent balance bar tipping, high-strength 7/16" balance bars, adjustable foot pads and oil-impregnated bronze bushings at pedal pivots. As with all Tilton pedal assemblies, ergonomic principles have been applied to reduce driver fatigue.

The standard of engineering, materials and workmanship that goes into the production Tilton 600-Series pedal boxes is unmatched by anything in their price range and difficult to beat regardless of budget, offering the best available value. Theoretical pedal ratio's of between 5.4:1 up to 6.9:1 with adjustable foot pads and please remember to use metallic hard or braided lines for supply and output when using in-cockpit mounted brake lines to remain fully race compliant.

Supplied as Displayed

  • Classic Underfoot Master Cylinder Layout
  • Use with Tilton 76-Series Master Cylinders
  • Pedal Ratio from 5.4:1 up to 6.9:1 Available
  • Oil-Impregnated Bronze Pedal Pivot Bushings
  • Forged aluminum pedals engineered for high rigidity and low weight
  • Lightweight and rigid aluminum frame designed to accept customer-supplied false floor/heal rest
  • Large 7/16”-20 balance bar minimizes flex and provides a solid pedal feel/response
  • Aluminum foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
  • Adjustable pedal ratio (5.4:1-6.9:1) enables fine tuning of braking system
  • Low friction oil-impregnated bushing on pedal pivots
  • Accepts Tilton 76-Series master cylinders
