Tilton 79-Series Master Cylinders

$344.25
(Exc. 8% Sales Tax - GA only)
0.625
0.700
0.750
0.812
0.875
0.937
Order today, dispatch in 3-7 days
+
SKU
79-625
Tilton
Information

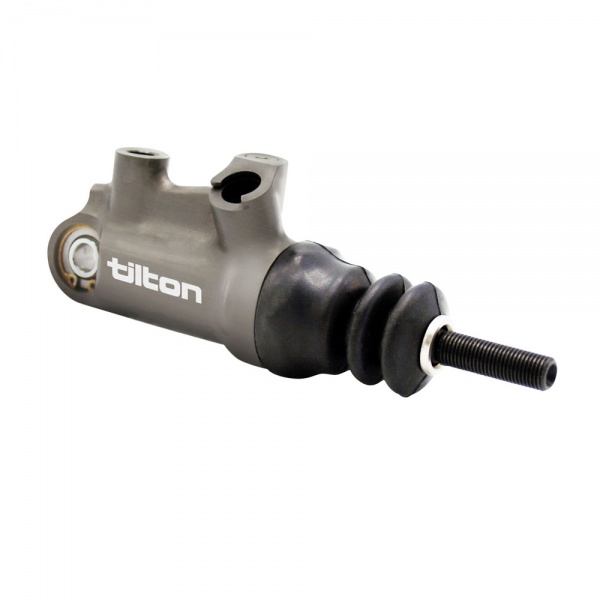

Tilton 79-Series Alloy Hydraulic Master Cylinders

Advanced Design for Motorsport ABS Systems

Tilton proudly introduces the new 79-Series Master Cylinders, engineered specifically for use with motorsport ABS systems. These master cylinders represent a significant advancement in braking technology, designed to enhance performance and reliability.

Innovative Features

  • New Port Strategy - Unlike traditional master cylinders, the 79-Series does not use a conventional cut-off port. Instead, it features a mechanically opened cut-off and compensation path, which reduces the risk of seal damage from high-pressure pulsations in ABS systems.
  • Enhanced Durability - The elimination of the cut-off port significantly lowers the chance of seal damage, ensuring longer-lasting performance under extreme conditions.
  • Precision Engineering - A rear spherical bearing mount and one-piece piston/pushrod design eliminate side thrust into the master cylinder bore, ensuring consistent and repeatable braking performance.
  • Premium Construction - The billet aluminum body with proprietary low-friction coatings minimizes wear and provides smooth operation, even in the most demanding racing environments.
  • Prolonged Service Life - Annual preventative maintenance is easy with Tilton's 79-Series Master Cylinder Repair Kits.

Key Specifications

  • Spherical Bearing Rear Pivot - Securely mounted with circlips for enhanced stability.
  • Compatibility - Fits seamlessly with Tilton 800 and 900 Series pedal assemblies and is interchangeable with 77 and 78 Series cylinders.
  • Lightweight Design - The bare cylinder weighs approximately 180 grams, contributing to overall vehicle weight reduction.

Variant Size Options

  • SKU: 79-625: Bore size 0.625" / 15.87mm (5/8") internal diameter
  • SKU: 79-700: Bore size 0.700" / 17.78mm (7/10") internal diameter
  • SKU: 79-750: Bore size 0.750" / 19.05mm (3/4") internal diameter
  • SKU: 79-812: Bore size 0.812" / 20.63mm (13/16") internal diameter
  • SKU: 79-875: Bore size 0.875" / 22.22mm (7/8") internal diameter
  • SKU: 79-937: Bore size 0.937" / 23.81mm (15/16") internal diameter

Please Note - Flexible lines must be used for inlet and outlet port plumbing.

Why Choose Tilton 79-Series Master Cylinders?

These master cylinders are specifically crafted for motorsport applications, providing unparalleled reliability and performance. The innovative design and high-quality materials ensure that you get the best braking experience possible, making them an ideal choice for serious racers.

Features
  • New compensation port strategy designed for use with ABS systems
  • No port or orifice for seals to cross over and get damaged
  • Directly interchangeable with Tilton 77‐Series and 78‐Series master cylinders
  • Billet aluminum body with proprietary low‐friction coatings minimize wear and provides smooth operation
  • Rear spherical bearing mount and one‐piece piston/pushrod eliminates side thrust into the master cylinder bore
  • Hand‐built, blueprinted and function tested
  • Serialized and recorded into Tilton build database
  • AN3 outlet port, Male AN4 o‐ring seal inlet swivel fitting (sold separately, P/N 79‐523)
  • Fits Tilton 800-Series and 900-Series pedal assemblies
  • Note: Flexible lines must be used for inlet and outlet port plumbing
Specification
BrandTilton
MPN79-625, 79-700, 79-750, 79-812, 79-875, 79-937
