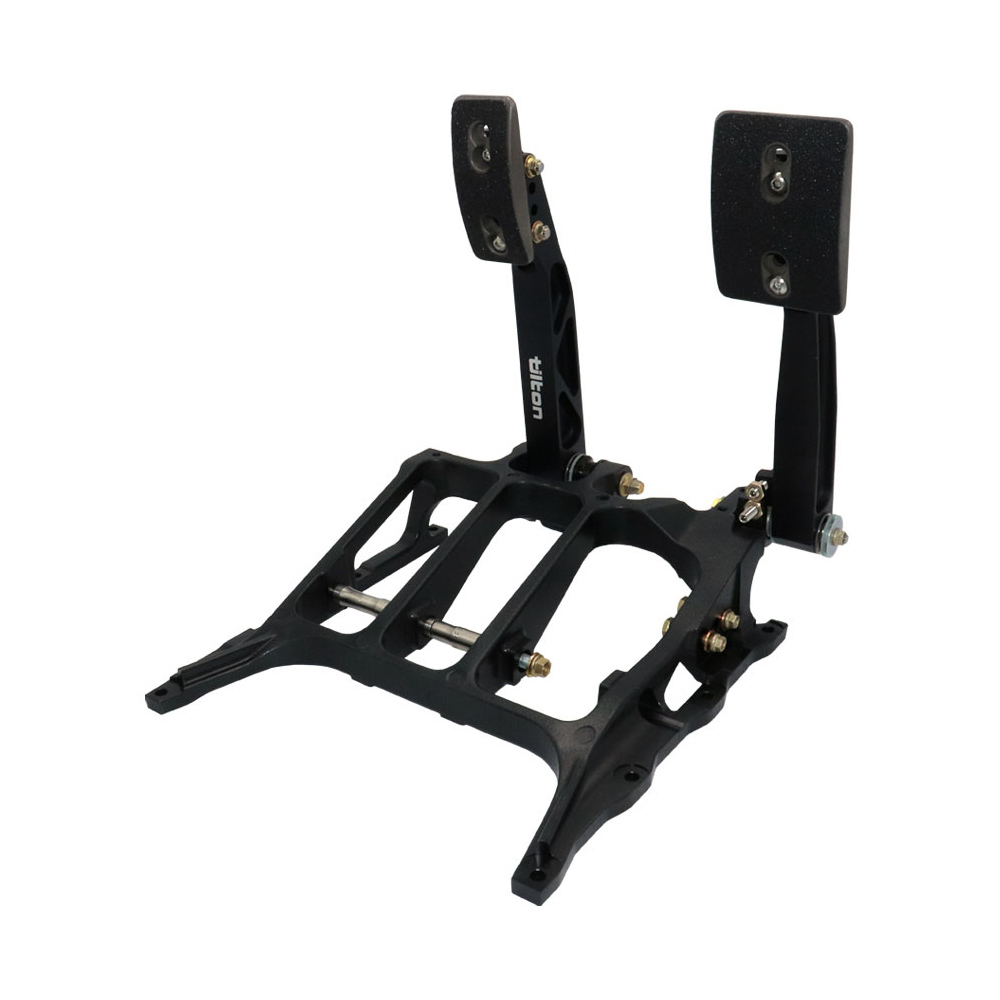

Tilton 850-Series 2 Pedal Under Foot Assembly

Tilton 850-Series 2 Pedal Under Foot Assembly
  Zoom
 Tilton 850-Series 2 Pedal Under Foot AssemblyTilton 850-Series 2 Pedal Under Foot Assembly
Price:  $803.25(Exc. 7% Sales Tax - GA only)
+

Part Number:  72-857
Mounting:  Under Foot

Availability:



No stock, delayed despatch

Tilton

Installation Drawing (PDF)
Balance Bar Setup Help (PDF)

Tilton’s 850-Series 2-pedal Underfoot pedal assembly merges the performance of the 900-Series pedal assembly technology and the renowned value of 600-Series pedal assemblies. Features a high-efficiency balance bar designed to limit motion to the horizontal plane, reducing friction and brake pressure migration. Specifically for use with Tilton 78 or 79-Series master cylinders. Please remember to use metallic hard or braided lines for supply and output when using in-cockpit mounted brake lines to remain fully race compliant.

Supplied as Displayed

  • Classic Underfoot Master Cylinder Layout
  • Use with Tilton 78 or 79-Series Master Cylinders
  • Pedal Ratio from 4.8:1 up to 6.1:1 Available
  • Oil-Impregnated Bronze Pedal Pivot Bushings
  • High-efficiency balance bar and pivot-mount master cylinders design
  • Forged aluminum pedals engineered for high rigidity and low weight
  • Adj. pedal ratio (4.8:1 to 6.1:1) enables brake pedal tuning, without changing master cylinder size
  • Foot pads can be adjusted vertically, horizontally and angle to suit individual driver preferences
  • Lightweight and high-strength aluminum frame
  • 7/16” diameter balance bar provides maximum rigidity
  • PTFE coated aluminum clevises allow for increased durability and reduced friction
  • Pedal pivots wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction
  • Throttle linkage kits options for mechanical linkage and Drive-by-Wire systems (sold separately)
