MSD HVC 2 Ignition Coil Black
MSD HVC 2 Ignition Coil Black
MSD HVC 2 Ignition Coil Black
MSD HVC 2 Ignition Coil Black

MSD HVC 2 Ignition Coil Black

$277.16
(Exc. 8% Sales Tax - GA only)
Order today, dispatch in 3-7 days
+
Part Number
82613
MSD Ignition
Information

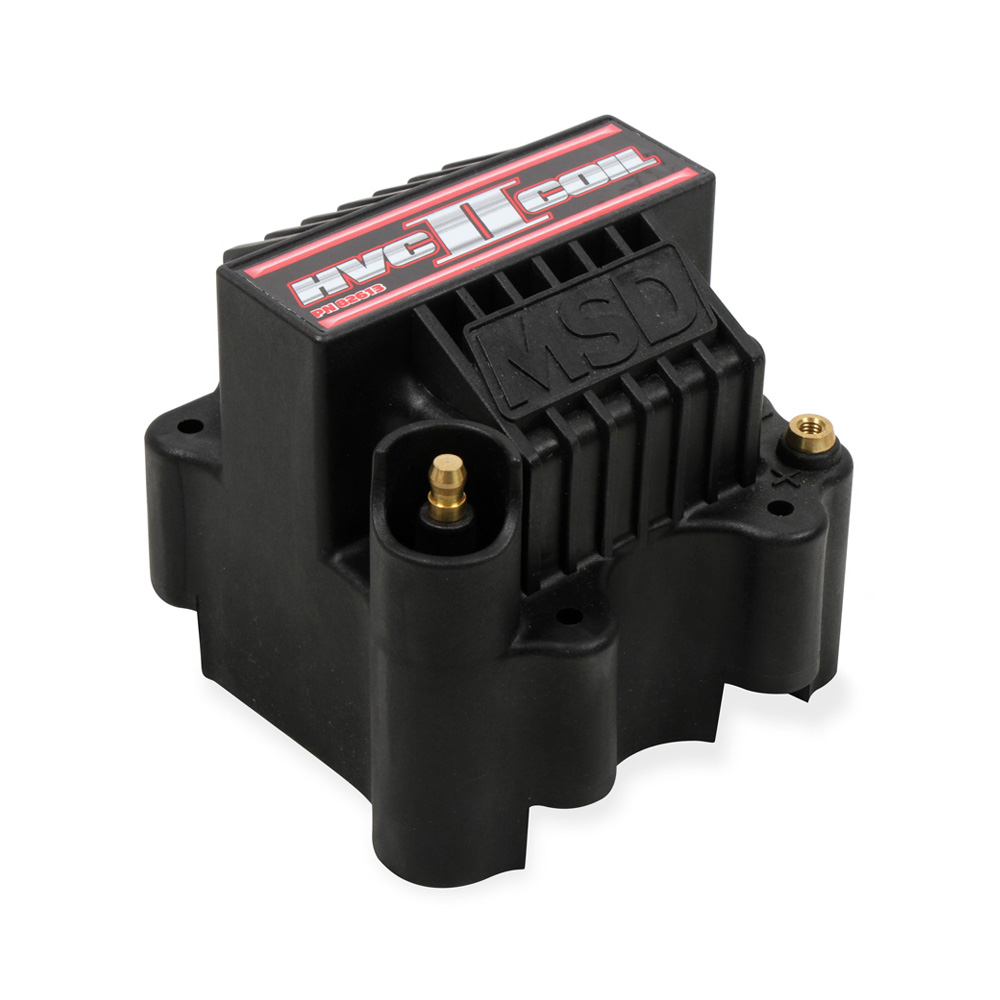

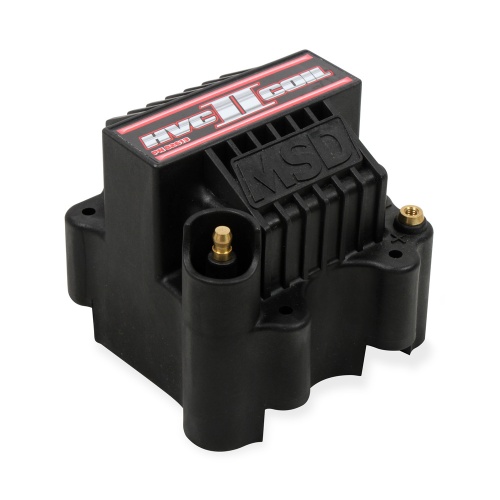

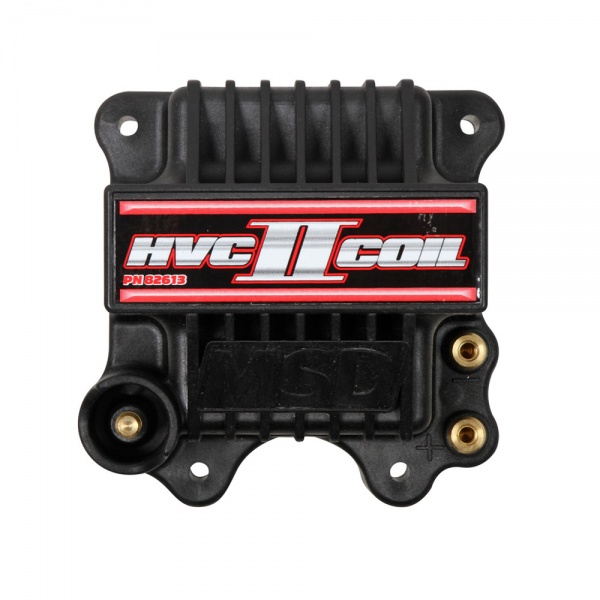

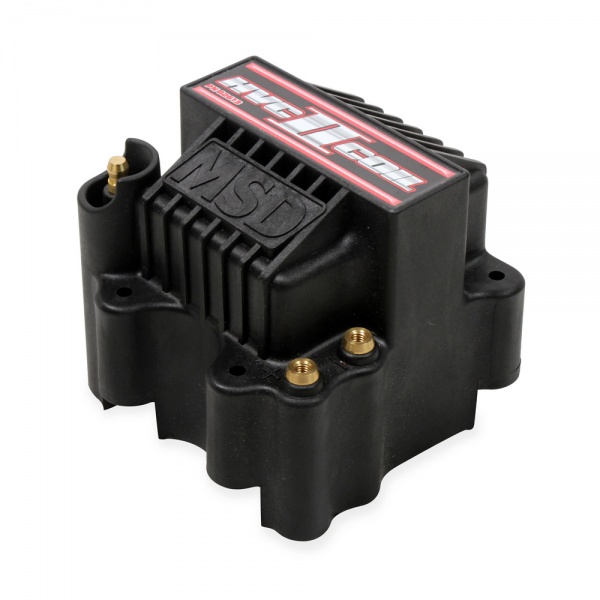

MSD HVC 2 ignition coil in black, also available in red HERE. These ignition coils are completely built in-house, so MSD engineers have exclusive control over their performance and quality.

The Coil utilizes an iron U-Core design, with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures.

MSD have also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration.

Features

  • Designed for racing applications with an MSD 7 or 8 Series Ignition Control
  • U-Core winding design produces more voltage and current
  • 70:1 turns ratio and lower primary resistant compound for vibration resistance
  • Tough, rigid housing with isolated tower and brass primary terminals

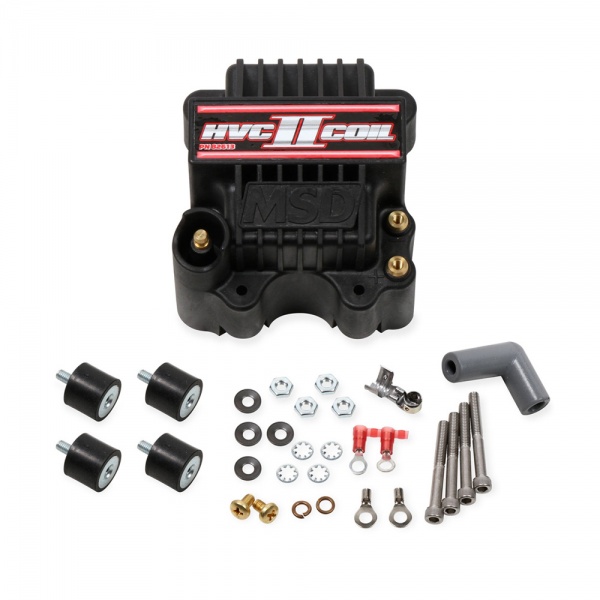

  • Supplied with mounting hardware and rubber shock mounts
Specs
BrandMSD
ColorBlack
Emission Code4
Inductance0.250 mH
Maximum Voltage45,000 Volts
Peak Current2 Amps
Primary Resistance0.16 OHMs
Product TypeIgnition Coil
Secondary Resistance20 OHM
Spark Duration150 uS
Turns Ratio70:1
TypeDrag Race / Long Duration Use
WarrantyLimited 1 Year Warranty (PDF)
Weight3.75 lbs
UPC085132826131
Part Number82613
Emissions

This part is legal for sale or use on Racing Use Only Vehicles
The following vehicles are considered Racing Use Only Vehicles:
Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street.

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
