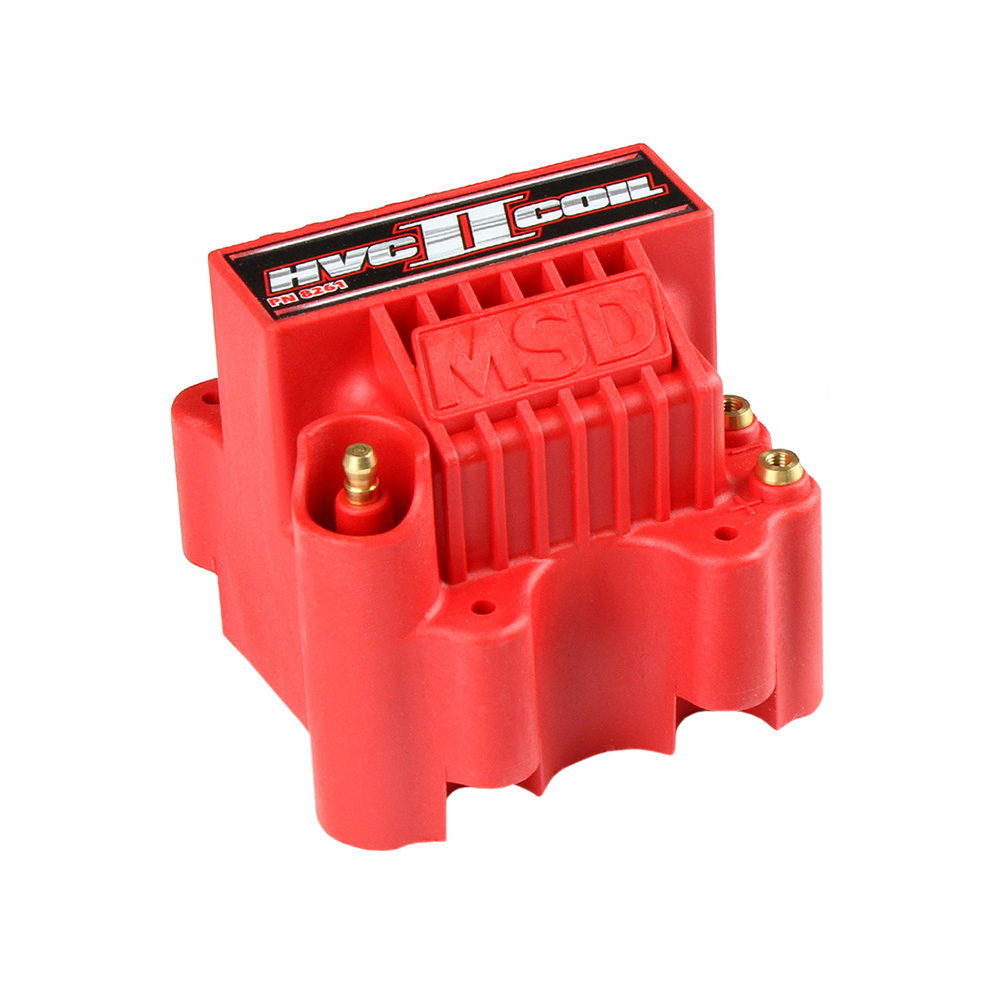

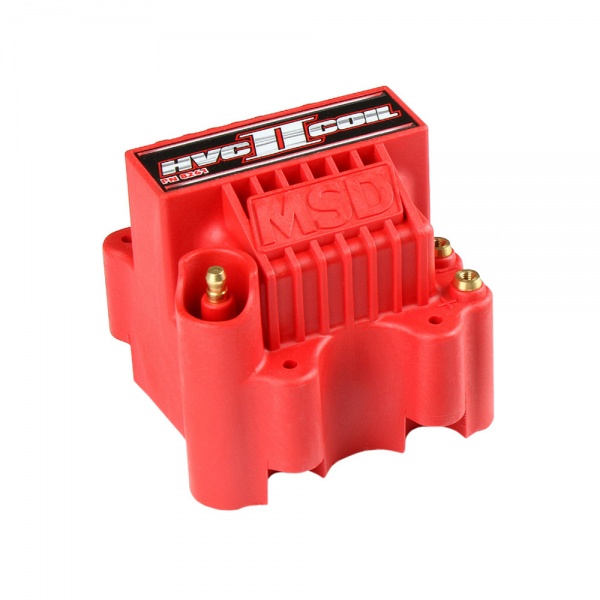

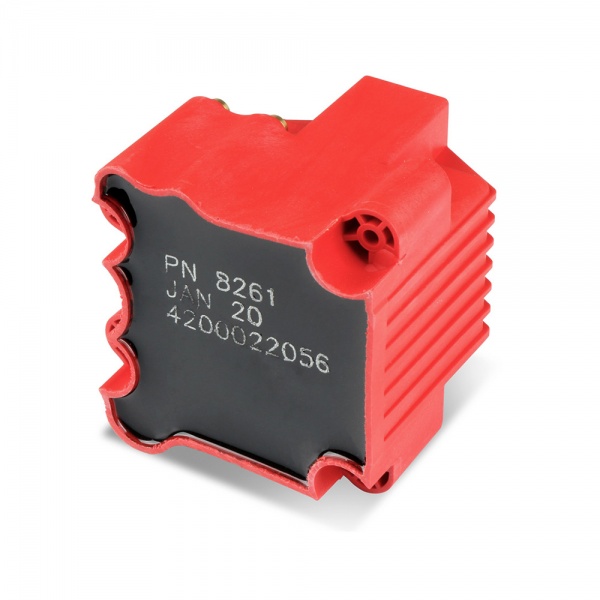

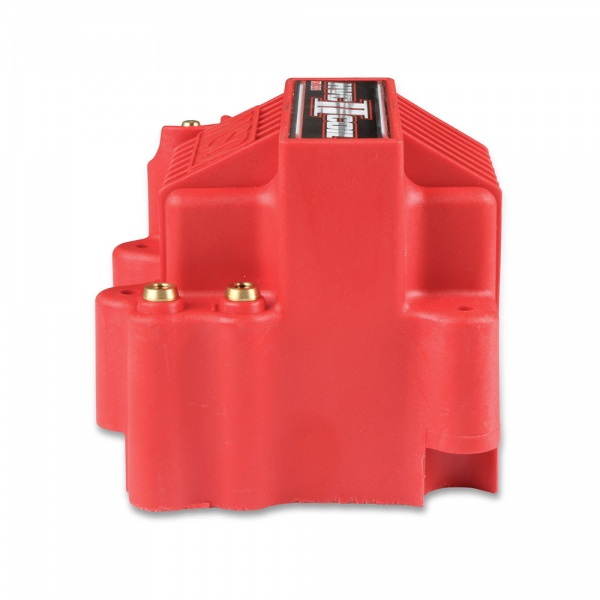

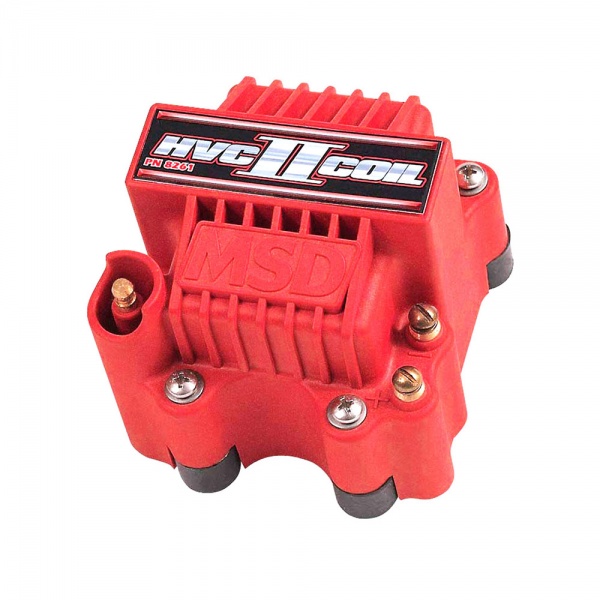

MSD HVC 2 Ignition Coil Red

MSD HVC 2 Ignition Coil Red
  Zoom
MSD HVC 2 Ignition Coil RedMSD HVC 2 Ignition Coil RedMSD HVC 2 Ignition Coil Red
MSD HVC 2 Ignition Coil RedMSD HVC 2 Ignition Coil Red
Price:  $290.95(Exc. 7% Sales Tax - GA only)
+

Part Number:  8261

Availability



No stock, delayed despatch

MSD Ignition

Installation Instructions (PDF)
Emissions
 This part is legal for sale and use on Racing Use Only Vehicles.
 The following vehicles are considered Racing Use Only Vehicles:
 Racing Use Only Vehicles are vehicles that are used exclusively
 for competition that are not registered and that may never be
 used on the street.
 See Emissions Details

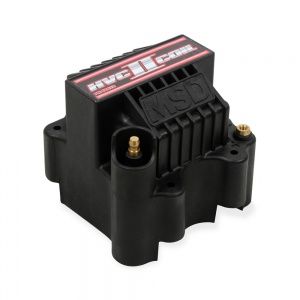

MSD HVC 2 ignition coil in red, also available in black HERE. These ignition coils are completely built in-house, so MSD engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design, with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD have also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration.

Features

  • Designed for racing applications with an MSD 7 or 8 Series Ignition Control
  • U-Core winding design produces more voltage and current
  • 70:1 turns ratio and lower primary resistant compound for vibration resistance
  • Tough, rigid housing with isolated tower and brass primary terminals

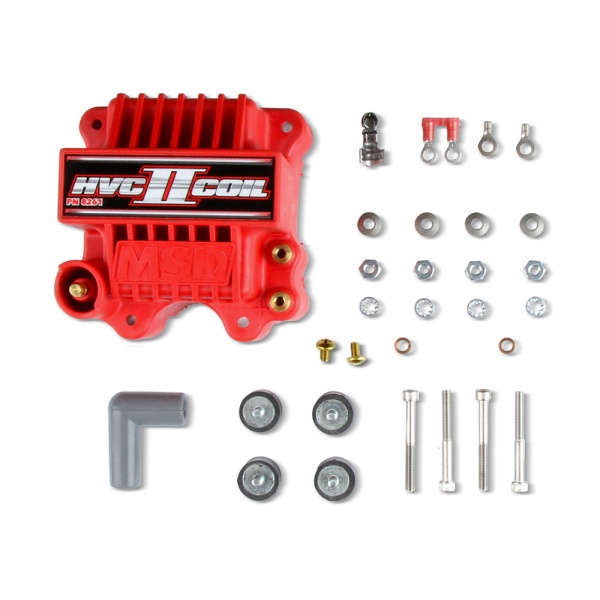

  • Supplied with mounting hardware and rubber shock mounts
BrandMSD
ColorRed
Emission Code4
Inductance0.250 mH
Maximum Voltage45,000 Volts
Peak Current2 Amps
Primary Resistance0.16 OHMs
Product TypeIgnition Coil
Secondary Resistance20 OHM
Spark Duration150 uS
Turns Ratio70:1
TypeDrag Race / Long Duration Use
WarrantyLimited 1 Year Warranty (PDF)
Weight3.75 lbs
UPC085132082612
Part Number8261

This part is legal for sale or use on Racing Use Only Vehicles
The following vehicles are considered Racing Use Only Vehicles
Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
