Racetech Hookes Type Universal Joints

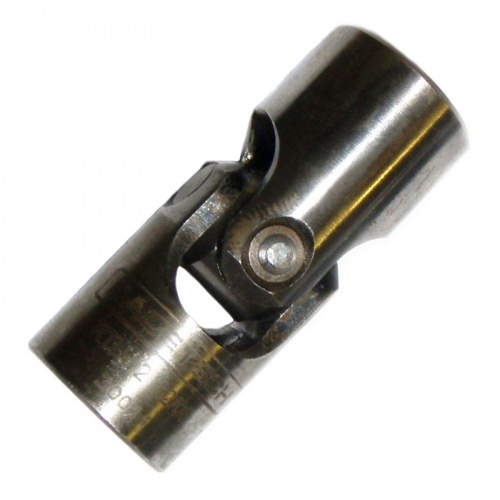

Racetech Hookes Type Universal Joints
  Zoom
Price:  $80.58(Exc. 7% Sales Tax - GA only)
+

Part Number:  RTUJ1
Overall Length:  2.125" / 53.98mm
Max Angle:  35⁰ Deflection

Racetech


Racetech 'Hookes' type universal joints, are pin and block friction bearing joints. These single pin and block universal joints are manufactured from high grade alloy steel for increased durability and better performance than standard industrial grade models. All components are heat treated, precision machined and ground to close tolerances. These Hookes type universal joints are made from AISI 1144 alloy steel. Available in either 1/2" X 1/2" or 1/2" X 5/8" bore. Suitable for applications such as gear linkages.

Priced Each

  • High Grade Suitable for Motorsport
  • Lightweight High Strength Materials
  • Suits Rear Engine/Gearbox Linkages
  • PART No. OD JOINT OD HUB ID LENGTH MAX ANGLE FAILURE TORQUE
    RTUJ1 0.870" 0.870” 0.500" x 0.500" 2.125” 35⁰ 2000lbs/in
    RTU2 0.870" 0.870” 0.500" x 0.625" 2.125” 35⁰ 2000lbs/in
