Racetech Mil Spec Universal Joints

$116.94
(Exc. 8% Sales Tax - GA only)
1/2" x 1/2"
5/8" x 5/8"
3/4" x 3/4"
13/16" x 13/16"
Incoming, 7-10 days
+
Part Number
RTUJB10
Racetech
Information

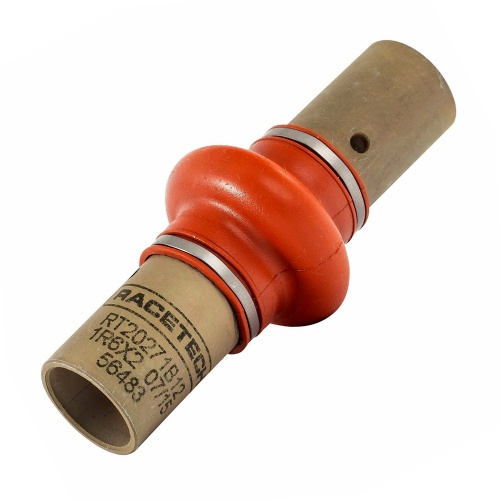

Racetech military specification Apex universal joints, precisely designed and manufactured for a variety of applications. These include specifications where low deflection rates, high strength-to-weight ratios and long service life are essential. Maximum operating angle is 30. These are the orange booted UJ's which are very common in the motorsport industry and are often the part most people think of when using the term UJ. Suitable for applications such as gear linkages.

Priced Each

  • Military Spec Universal Joints
  • Lightweight High Strength Design
  • Suits Rear Engine/Gearbox Linkages
Data Sheet
PART No.OD JOINTOD BOOTINSIDE DIALENGTHMAX ANGLEFAIL TORQUE
RTUJB100.625”1.130"0.500"2.750”30⁰1080lbs/in
RTUJB120.750”1.250"0.625"3.187”30⁰1900lbs/in
RTUJB140.875"1.500"0.750"3.625”30⁰3000lbs/in
RTUJB161.000”1.550"0.812"4.062”30⁰4700lbs/in
