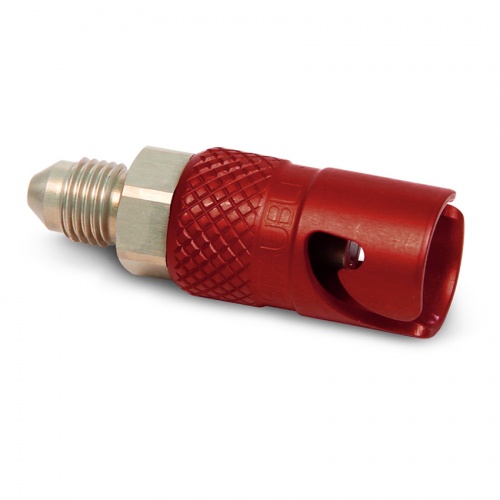

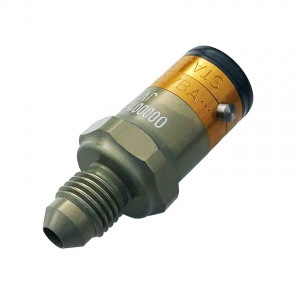

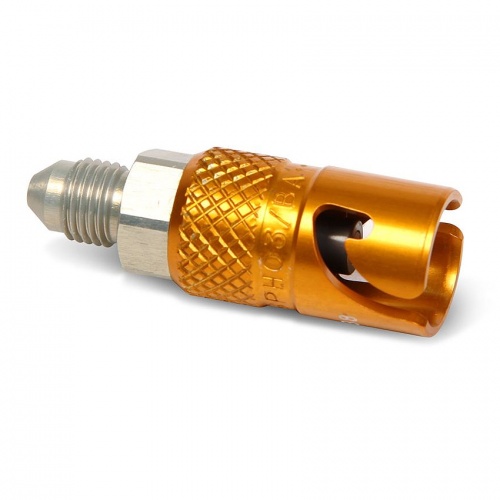

Staubli SPH03 Aluminum Plugs

$151.90
(Exc. 8% Sales Tax - GA only)
-03
-04
EPDM
FPM
Order today, dispatch in 7-14 days
+
Part Number
SPH03.7652/BA/L/KR/JE
Staubli
Information

Staubli SPH03 Aluminium Plugs

Staubli SPH03 Aluminium Plugs with a 3mm flow diameter (5mm, 8mm,12mm and 16mm also available). Non-spill quick release couplings with bayonet locking for motorsports SPH/BA, these completely non-spill SPH/BA couplings give you a guaranteed seal on connection and disconnection.

Air does not penetrate and there is no need to bleed the circuits. These couplings are designed for the most demanding on-board applications, combining resistance, with bayonet locking, compactness and lightness.

Applications include automotive and motorcycle braking circuit connections, connection of high pressure hydraulic circuits, cooling of engine oil and water, fuel line connections.

Technical Specifications:

  • Bore diameter: 3mm
  • Maximum working pressure: 350 bar
  • Operating temperatures: -20 to +200°C

Fluids:

  • Brake fluids, oils, mineral greases, nitrogen, gasoline, etc.

Construction:

  • Manufactured in high-resistance aluminium, available with two types of seal and finished in red or yellow in the aluminium for ease of identification.
Specification
BrandStaubli
MPNSPH03.7652BALKRJE, SPH03.7652BALKJJE, SPH03.7652BALKRJV, SPH03.7652BALKJJV, SPH03.7653BALKRJE, SPH03.7653BALKJJE, SPH03.7653BALKRJV, SPH03.7653BALKJJV
