Staubli SPT08 Aluminum Plugs

Staubli SPT08 Aluminum Plugs
  Zoom
Fitting: -06 JIC,  Type: Panel/Bulkhead MountType: StandardFitting: -08 JIC,  Type: Panel/Bulkhead Mount
Price:  $321.30(Exc. 7% Sales Tax - GA only)
+

Part Number:  SPT08.5655/L/JV

Staubli


Staubli SPT08 Aluminium Plugs with a 8mm flow diameter (5mm and 12mm also available). SPT couplings for inboard fuel lines meet the tough requirements of motorsports by combining high flow performance with reliable non-spill safety. Staubli SPT08 plugs are very compact and lightweight, and designed to easily fit into all types of vehicles. Applications: Connection to fuel lines (with breakaway option), FIA-approved sampling, refueling of rally raid vehicles (rally raid version).

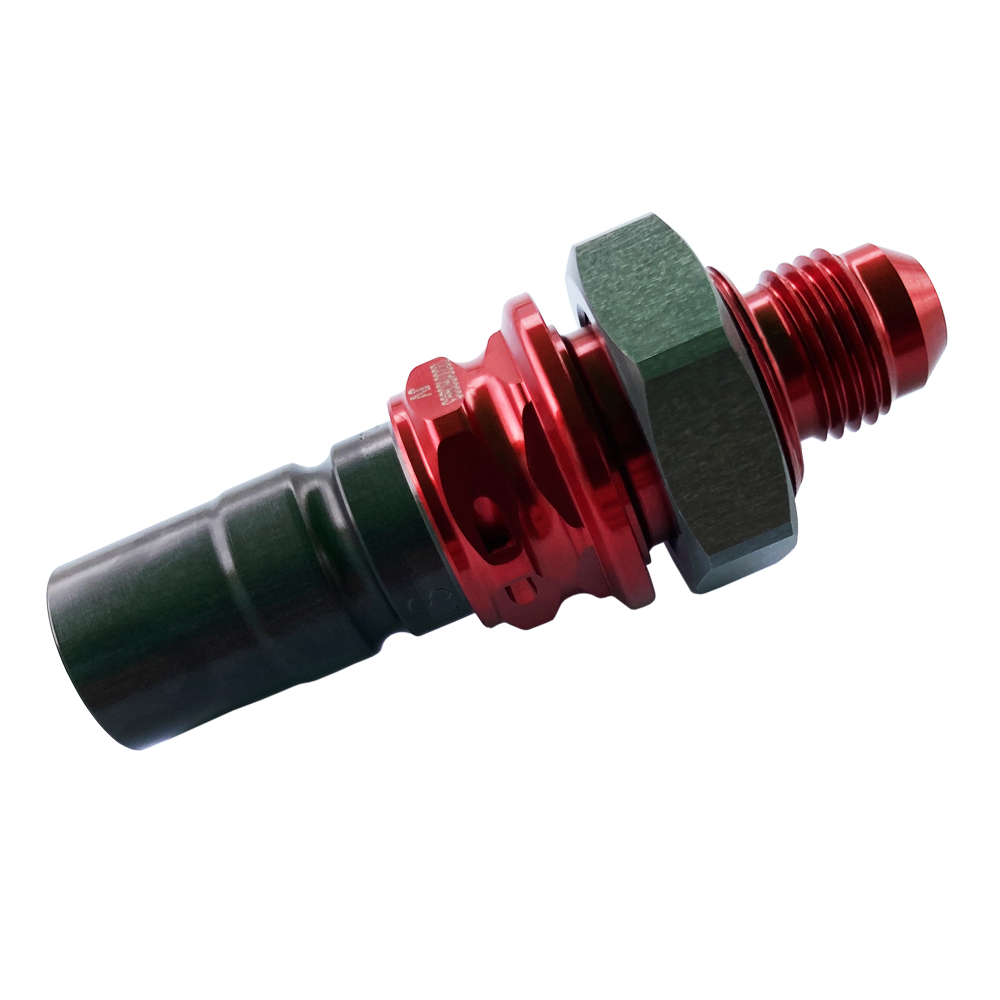

* NB - Images for type / model illustration only - please do not rely on part numbers visible on images when selecting products!)

Technical Specifications:
  • Bore Diameter: 8mm
  • Maximum Working Pressure: 40 bar
  • Operating Temperatures: -10 to +200C

  • Fluids:
  • Fuel, Oil

  • Construction:
  • Manufactured in high-resistance anodized aluminum
