Tilton 600-Series 2 Pedal Floor Mount Assembly

Tilton 600-Series 2 Pedal Floor Mount Assembly
 Tilton 600-Series 2 Pedal Floor Mount AssemblyTilton 600-Series 2 Pedal Floor Mount Assembly
Price:  $276.25(Exc. 8% Sales Tax - GA only)

Part Number:  72-604
Mounting  Floor


No stock, delayed despatch

No stock, delayed despatch


Installation Drawing (PDF)
Installation Instructions (PDF)
Balance Bar Setup Help (PDF)

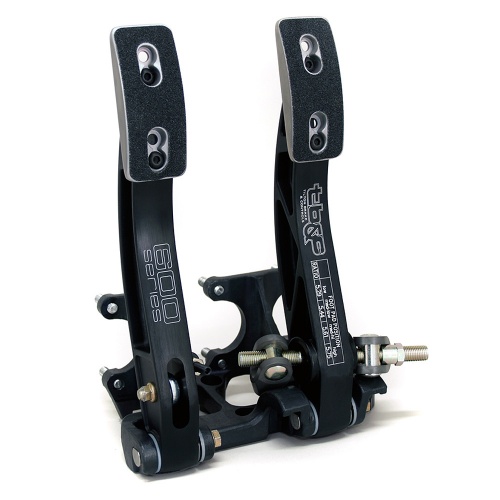

The Tilton 600-Series 2 pedal floor mount assembly, ideal for those not requiring a throttle pedal. These assemblies feature traditional fixed-mount master cylinder and balance bar technology and provides excellent performance at competitive price. The latest 600-Series pedal assemblies have been re-engineered to incorporate features from the range topping 900-Series, yet remaining available at a more affordable price point for the clubman racer. They provide exceptional driver feedback and include features like PTFE coated aluminum clevises for increased durability and reduced friction. Pedal pivots with wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction. Large diameter 7/16-20 balance bar provides maximum rigidity and lightweight aluminum frame features guide 'ramps' help reduce balance bar tipping, decreasing friction and improving brake repeatability. Adjustable clutch pedal stop prevents clutch over-stroking.

As with all Tilton pedal assemblies, ergonomic principles have been applied to reduce driver fatigue. The standard of engineering, materials and workmanship that goes into the production Tilton 600-Series pedal boxes is unmatched by anything in their price range and difficult to beat regardless of budget, offering the best available value. Adjustable pedal ratio (5.29:1, 5.44:1, 5.61:1, 5.75:1) enable the brake pedal to be tuned to driver preference without necessarily needing to change master cylinder bore size. Please remember to use metallic hard or braided lines for supply and output when using in-cockpit mounted brake lines to remain fully race compliant.

Supplied as Displayed

  • Traditional Fixed-Mount Master Cylinder Layout
  • Pedal Ratio from 5.29:1 up to 5.75:1 Available
  • Oil-Impregnated Bronze Pedal Pivot Bushings
  • Road Racing
  • Endurance
  • Open Wheel/Formula
  • Off Road
  • High Performance Street/Strip
  • Circle Track
  • Rally
  • Drifting
  • Time Attack

  • Mounting Location: Floor
  • Pedal Material: Forged Aluminum
  • Weight: 5.5 lbs (2.5 kg)
