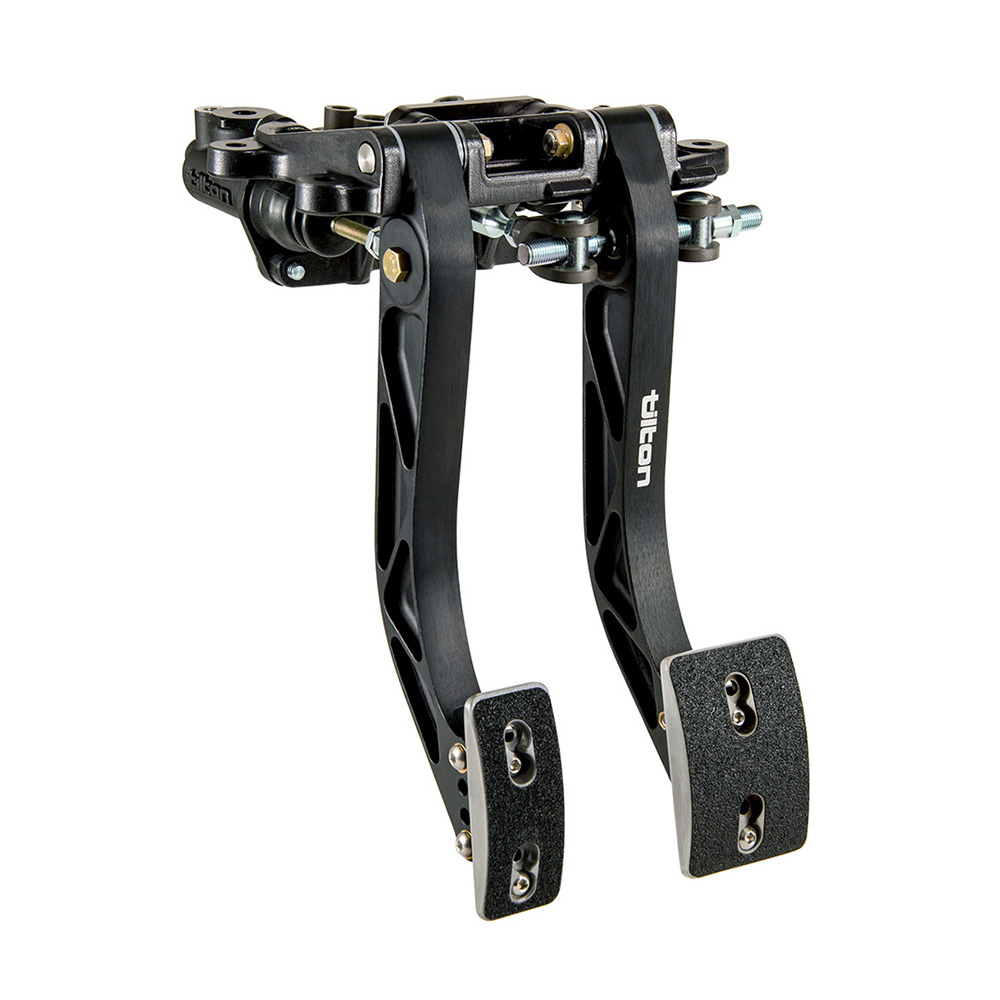

Tilton 800-Series 2 Pedal Firewall Mount Assembly

Tilton 800-Series 2 Pedal Firewall Mount Assembly
  Zoom
Price:  $548.25(Exc. 7% Sales Tax - GA only)
+

Part Number:  72-807
Mounting  Firewall

Availability



No stock, delayed despatch

Tilton

Installation Drawing (PDF)
Balance Bar Setup Help (PDF)

Tilton’s 800-Series firewall-mount pedal assembly merges the performance of 900-Series pedal assembly technology and the renowned value of 600-Series pedal assemblies. Features high-efficiency spherical bearing type balance bar and pivot-mount master cylinder design.

Tilton 800-Series 2 pedal, firewall mounted assembly is supplied with bronze bushed, brake and clutch pedals, supplied ready for assembly, for under dashboard mounting, with an ergonomic pedal design which helps reduce driver fatigue. The pedals have a variable pedal ratio, thanks to the adjustable pad design, with ratios from 5.0:1 to 6.2:1 attainable with adjustment to the extremes of the available mounting positions. Superb design provides exceptional feedback, with an adjustable integral clutch stop to prevent over stroking of spring diaphragms. The assembly is compatible with the 78 and 79-Series master cylinders for the brakes and uses a the 76-Series master cylinder for the clutch.

Master cylinders not supplied, please order separately

  • Highly Adjustable Pedal Pad Positioning
  • Compatible with 600-Series Firewall Gas Pedals
  • Pedal Ratios from 5.0:1 to 6.2:1 Achievable

  • High-efficiency balance bar and pivot-mount master cylinder design
  • Forged aluminum pedals are engineered for high rigidity and low weight
  • Adjustable pedal ratios (5.0:1 – 6.2:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size
  • Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
  • Large diameter 7/16”-20 balance bar provides maximum rigidity
  • PTFE coated aluminum clevises for increased durability and reduced friction
  • Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction
  • Lightweight aluminum frame features guide “ramps” to reduce balance bar tipping, decreasing friction and improving brake repeatability
