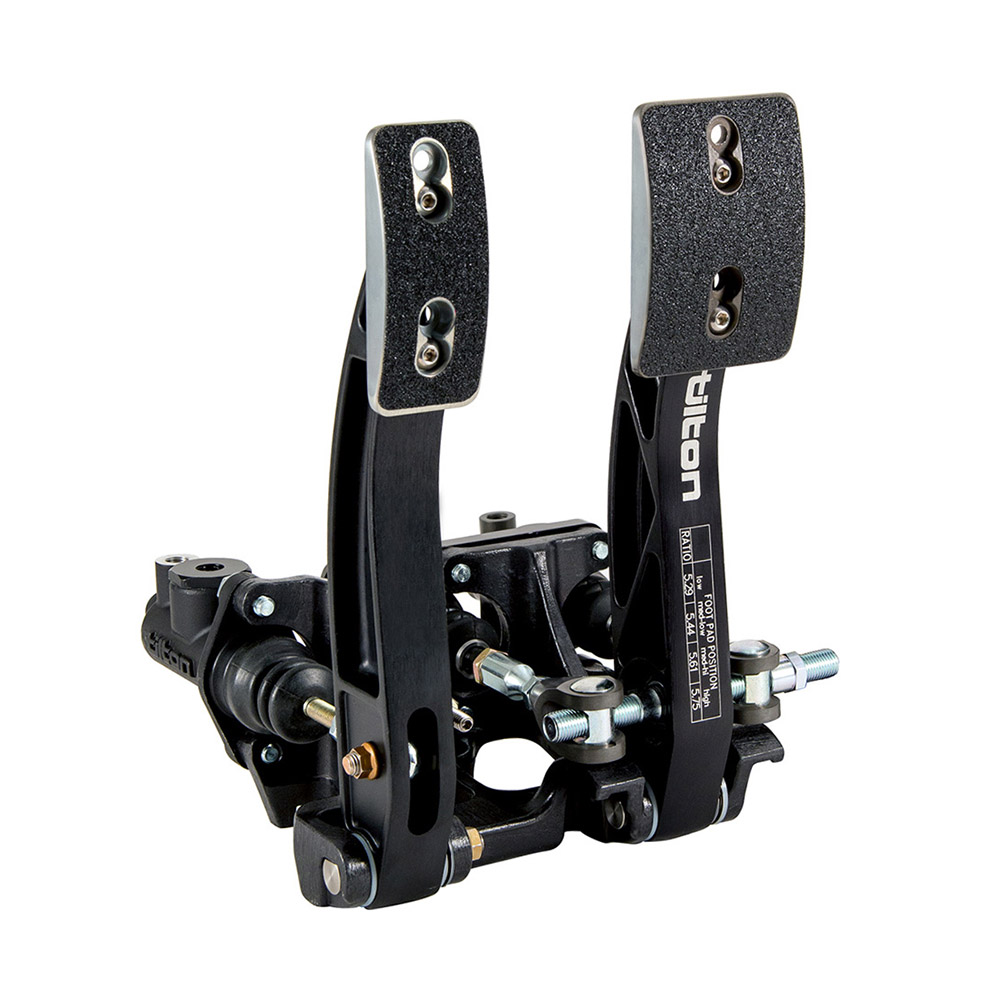

Tilton 800-Series 2 Pedal Floor Mount Assembly

Tilton 800-Series 2 Pedal Floor Mount Assembly
  Zoom
Price:  $548.25(Exc. 7% Sales Tax - GA only)
+

Part Number:  72-804
Mounting:  Floor

Availability:



No stock, delayed despatch

Tilton

Installation Drawing (PDF)
Balance Bar Setup Help (PDF)

The Tilton 800-Series 2 pedal floor mount assembly, ideal for those not requiring a throttle pedal. Tilton’s 800-Series 2-pedal floor mount pedal assembly merges the performance of 900-Series pedal assembly technology and the renowned value of 600-Series pedal assemblies. Features high-efficiency spherical bearing type balance bar and pivot-mount master cylinder design.

As with all Tilton pedal assemblies, ergonomic principles have been applied to reduce driver fatigue. The standard of engineering, materials and workmanship that goes into the production Tilton 800-Series pedal boxes is unmatched by anything in their price range and difficult to beat regardless of budget. Please remember to use metallic hard or braided lines for supply and output when using in-cockpit mounted brake lines to remain fully race compliant. Compatible with 78-Series or 79-Series master cylinders for the brakes and 76-Series master cylinders for the clutch (sold separately).

Supplied as Displayed

  • High-Efficiency Pivot-Mount Master Cylinders
  • Pedal Ratio from 5.29:1 up to 5.75:1 Available
  • Oil-Impregnated Bronze Pedal Pivot Bushings
  • High-efficiency balance bar and pivot-mount master cylinder design
  • Forged aluminum pedals are engineered for high rigidity and low weight
  • Adj. pedal ratios (5.29:1, 5.44:1, 5.61:1, 5.75:1) enable brake pedal tuning without changing master cylinders
  • Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
  • Large diameter 7/16”-20 balance bar provides maximum rigidity
  • PTFE coated aluminum clevises for increased durability and reduced friction
  • Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction
  • Lightweight aluminum frame features guide “ramps” to reduce balance bar tipping, decreasing friction and improving brake repeatability
