Tilton 800-Series 3 Pedal Floor Mount

$722.50
(Exc. 8% Sales Tax - GA only)
Order today, dispatch in 3-7 days
+
Part Number
72-803
Tilton
Information

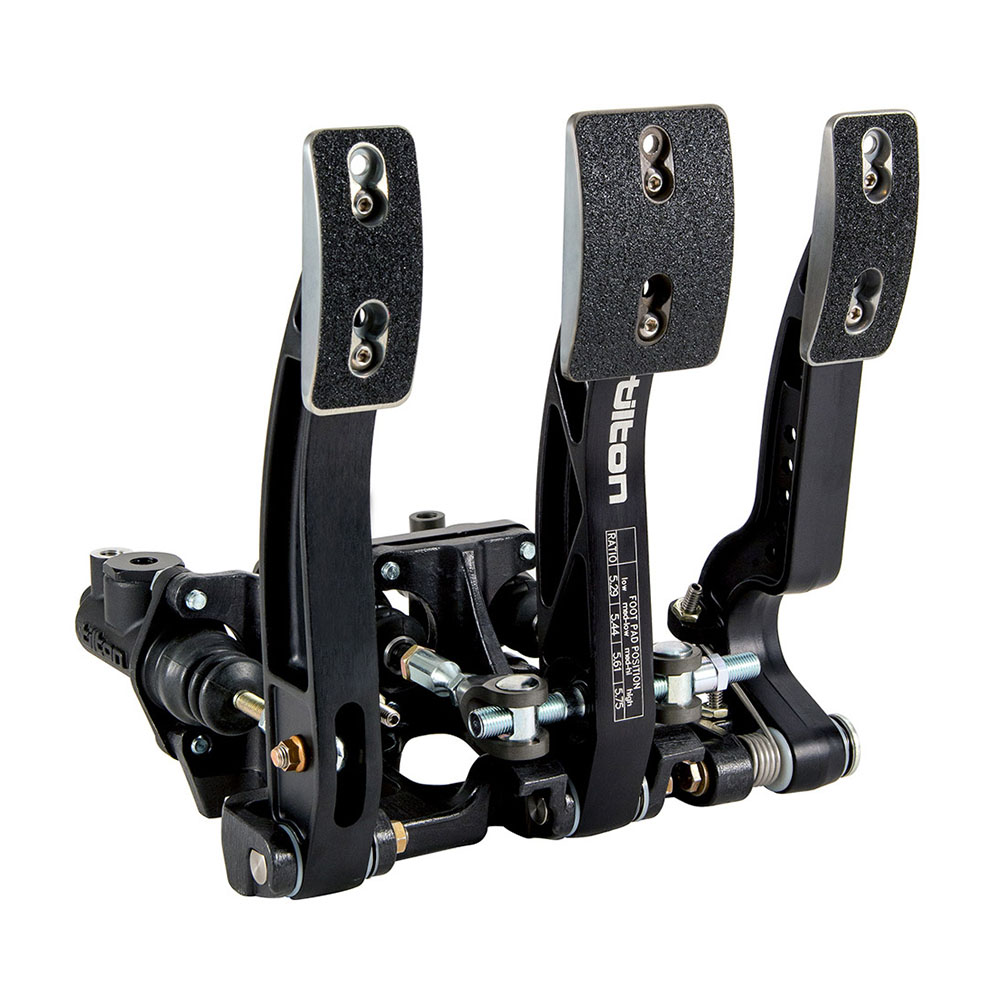

The Tilton 800-Series 3 pedal floor mount assembly. Tilton’s 800-Series 3-pedal floor mount pedal assembly merges the performance of 900-Series pedal assembly technology and the renowned value of 600-Series pedal assemblies.

Features high-efficiency spherical bearing type balance bar and pivot-mount master cylinder design. As with all Tilton pedal assemblies, ergonomic principles have been applied to reduce driver fatigue.

The standard of engineering, materials and workmanship that goes into the production Tilton 800-Series pedal boxes is unmatched by anything in their price range and difficult to beat regardless of budget.

Please remember to use metallic hard or braided lines for supply and output when using in-cockpit mounted brake lines to remain fully race compliant.

Supplied as displayed

  • High-efficiency pivot-mount master cylinders
  • Pedal ratio from 5.29:1 up to 5.75:1 available
  • Oil-impregnated bronze pedal pivot bushings
  • Compatible with 78-Series or 79-Series master cylinders for the brakes and 76-Series master cylinders for the clutch (sold separately).

    Product Data
  • High-efficiency balance bar and pivot-mount master cylinder design
  • Forged aluminum pedals with adjustable (vertical/horizontal) foot pads and anti-slip surfaces.
  • Adj. pedal ratios (5.29:1, 5.44:1, 5.61:1, 5.75:1) enable brake pedal tuning without changing master cylinders
  • Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
  • Large diameter 7/16”-20 balance bar provides maximum rigidity
  • PTFE coated aluminum clevises for increased durability and reduced friction
  • Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction
  • Lightweight aluminum frame features guide 'ramps' to reduce balance bar tipping, decreasing friction and improving brake repeatability
  • Adjustable clutch pedal stop prevents clutch over-stroking
