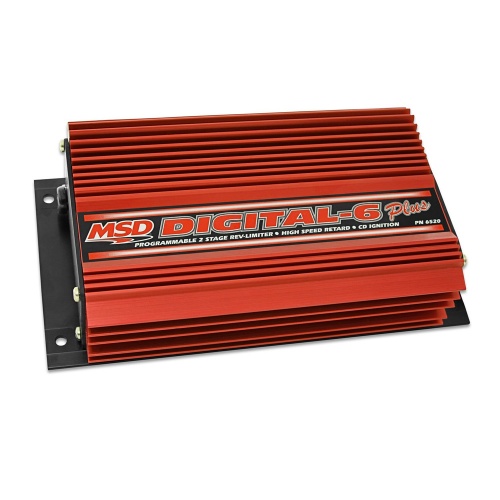

MSD Digital-6 Plus Ignition Controller 6520

MSD Digital-6 Plus Ignition Controller 6520
  Zoom
MSD Digital-6 Plus Ignition Controller 6520MSD Digital-6 Plus Ignition Controller 6520MSD Digital-6 Plus Ignition Controller 6520
Price:  $494.95(Exc. 7% Sales Tax - GA only)
+

Part Number:  6520

Availability:



No stock, delayed despatch

MSD Ignition

Installation Instructions (PDF)
Emissions
  This part is legal for sale and use on Emissions Controlled Vehicles,
  in all 50 US States, when used in accordance with the manufacturers
  application guide because it has a California Air Resources Board
  (CARB) executive order (EO) number.
  See Emissions Details

MSD Digital-6 Plus ignition controller. This system combines terrific power, digital accuracy, and great accessories making it ideal for street/strip applications, with every spark from the Digital-6 Plus Ignition unit, packed with 135 millijoules of spark energy and 535 primary volts.

For nitrous-equipped cars, the Digital-6 Plus offers a step retard that will retard the timing when the nitrous is activated. There is also a 2-step rev limiter for holeshot consistency and over-rev protection. The Digital-6 Plus accepts points, amplifier and mag pickup inputs and will run on 4, 6, or 8 cylinder engines.

The MSD Digital-6 Plus uses a high-speed RISC microcontroller to control the ignition's output while constantly analyzing the various inputs such as supply voltage, trigger signals, and rpm. The high-speed controller can make extremely quick compensations to the output voltage, multiple spark series, timing, and rpm limits while maintaining accurate timing signals to within 1 and 1% of the rpm limits. The circuits and controller of the Digital 6 Plus have been thoroughly debounced and isolated to create protection against Electro-Magnetic Interference (EMI).

Features

  • Switch between two rev limits that adjust with rotary switches in 100 rpm increments
  • Single stage retard for nitrous and top end performance
  • Start retard eases pressure on the starter, flywheel and engine
  • Adjustable magnetic pickup compensation produces accurate trigger signals
  • LED display warns of trigger signal problems or faulty charging system

  • BrandMSD
    ColorRed
    Current Draw0.7 Amp per 1,000 RPM
    Emission Code1
    Primary Voltage535 Volts
    Product TypeDigital-6 Plus Ignition Control Box
    RPM Range12,500 RPM with 14.4 Volts
    Secondary Voltage45,000 Volts
    Spark Series Duration20° Crankshaft Rotation
    Voltage Required12-18 Volts, Negative Ground
    WarrantyLimited 1 Year Warranty (PDF)
    Weight and Size3.7 lbs, 8.5" L x 4.5" W x 2.2" H
    UPC085132065202
    Part Number6520

    This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.

    The following vehicles are considered Emissions Controlled Vehicles:

    1966 and newer U.S. manufactured California Certified vehicles
    1968 and newer U.S. manufactured Federally Certified vehicles
    1968 and newer Foreign manufactured vehicle
